VIM4/3/3L/1S/Edge2 Yocto SDK first release

JJ1997 · September 1, 2025, 1:27pm

I find all the rootfs will be copied into the initramfs. You can just test it with adding an extra space in rootfs without modifying or adding packages in the orginal sdk. For example, add this in local.conf.

IMAGE_ROOTFS_EXTRA_SPACE = “3145728”

numbqq · September 2, 2025, 1:14am

Hello @yangchao315

Yes, this Yocto SDK is for VIM3/3L/4/1S.

For VIM1, maybe you can try this:

JJ1997 · September 2, 2025, 4:20pm

I think there is an issue with the U-Boot configuration.

github.com/khadas/meta-meson

recipes-bsp/u-boot/u-boot_2015.01.bb

yocto-kirkstone-202406-smarthome



          export BL2_ARG = ""

          BL33_ARG = "${@bb.utils.contains('DISTRO_FEATURES','AVB','--avb2','',d)}"

          CFLAGS +=" -DCONFIG_YOCTO "
          KCFLAGS +=" -DCONFIG_YOCTO "
          BUILD_GPT_FLAG=""
          BUILD_GPT_FLAG:k5.15="--gpt"

          FINAL_DEFCONFIG_PATH = "${S}/bl33/v2015/board/amlogic/defconfigs"
          DEFCONFIG = "${UBOOT_TYPE%_config}_defconfig"

          do_compile:prepend () {
              cfg_files=$(find ${WORKDIR} -maxdepth 1 -name "*.cfg")
              if [ -n "$cfg_files" ]; then
                  UBOOT_TYPE="${UBOOT_MACHINE}"
                  if [ ! -f ${FINAL_DEFCONFIG_PATH}/${DEFCONFIG}.temp ]; then
                      mv ${FINAL_DEFCONFIG_PATH}/${DEFCONFIG} ${FINAL_DEFCONFIG_PATH}/${DEFCONFIG}.temp
                  fi

                  KCONFIG_CONFIG=${FINAL_DEFCONFIG_PATH}/${DEFCONFIG} ${WORKDIR}/merge_config.sh -m -r ${FINAL_DEFCONFIG_PATH}/${DEFCONFIG}.temp ${cfg_files}

When I tried to check the defconfig name using bbnote, the UBOOT_TYPE variable was empty.

NOTE: UBOOT_TYPE=
NOTE: DEFCONFIG=_defconfig

And I’m not sure if the FINAL_DEFCONFIG_PATH is good. It seems it should be ${S}/bl33/v2015/board/khadas/defconfigs? because in ${S}/bl33/v2015/board/amlogic/defconfigs we have nothing related to kvim3_config (UBOOT_MACHINE)

numbqq · September 3, 2025, 12:52am

Hello @JJ1997

We will check this issue. @Naruto-China pls follow up.

JJ1997 · September 5, 2025, 12:42pm

@numbqq Could you also check this issue? Due to the limitations of initramfs, we cannot increase the rootfs size or add new packages. Thanks!

numbqq · September 8, 2025, 12:59am

Hello @JJ1997

Could you provide the patches you add packages to us based on the orignal code? We want to reproduce this issue on our side.

JJ1997 · September 8, 2025, 7:36am

Hello @numbqq, as explained here, you can producre this issue by add increasing rootfs size in the original khadas source.

By the way, I think remove initramfs-recovery in recovery-image.bb can disable initramfs.

IMAGE_INSTALL:remove = " initramfs-recovery"

numbqq · September 9, 2025, 6:28am

Hello @JJ1997

OK, I have reproduce this issue, we will check on our side.

Naruto-China · September 10, 2025, 3:31am

The FINAL_DEFCONFIG_PATH variable points to${S}/bl33/v2015/board/khadas/defconfigs. As shown in the figure below, the directory contains the kvim3_defconfig file, which is the configuration file for U-Boot.

As shown in the figure below, in the file meta-aml-cfg/conf/machine/mesong12b-kvim3-common.inc, the kvim3_config variable is assigned to UBOOT_MACHINE.

image1037×364 77.6 KB

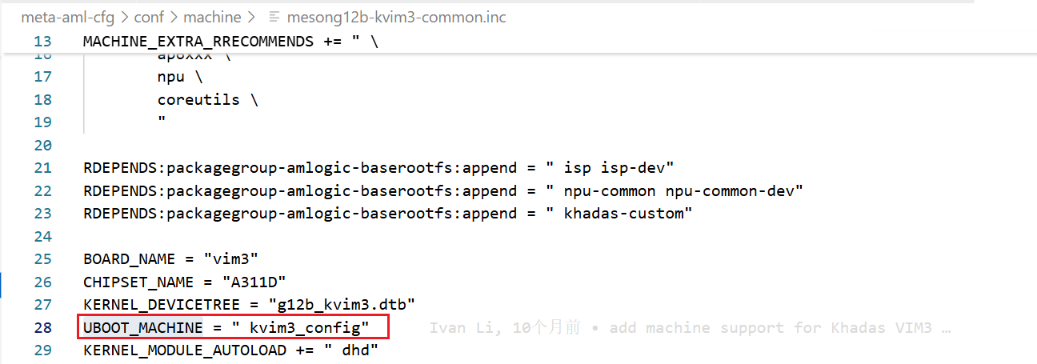

As shown in the figure below, in the file meta-meson/recipes-bsp/u-boot/u-boot_2015.01.bb, the UBOOT_MACHINE variable is used to assign a value to UBOOT_TYPE, where UBOOT_TYPE = kvim3_config.

image947×383 90.5 KB

Regarding your question about kvim3_config not being located in the
${S}/bl33/v2015/board/khadas/defconfigs directory, please refer to the figure below. The following details can be observed in the meta-meson/recipes-bsp/u-boot/u-boot_2015.01.bbfile.
The expression ${UBOOT_TYPE%_config}_defconfig performs the following operations:
- Removes the suffix _config from ${UBOOT_TYPE}(e.g., kvim3_config→ kvim3)
- Appends _defconfig to generate the final filename (kvim3→ kvim3_defconfig)
- Assigns the result to the DEFCONFIG variable, yielding:
```
DEFCONFIG = kvim3_defconfig
```
At this point, DEFCONFIG = kvim3_defconfig , which corresponds exactly to the kvim3_defconfig file located in the ${S}/bl33/v2015/board/khadas/defconfigs directory.

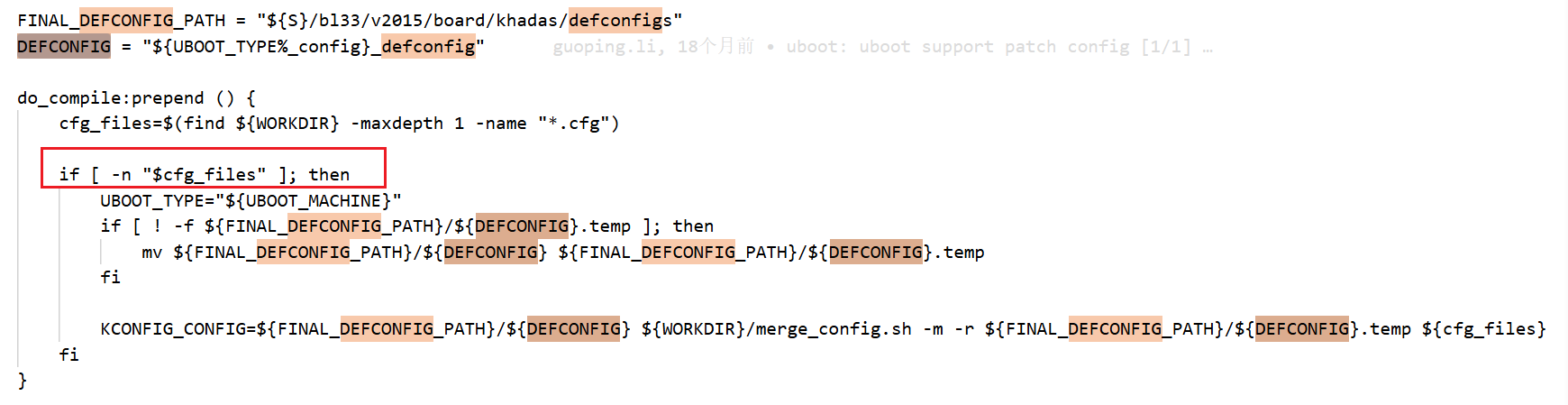

image936×218 52.9 KB
Regarding the issue of the UBOOT_TYPE and DEFCONFIG variables being empty, I am not clear about the specific location where your bbnote is being printed.

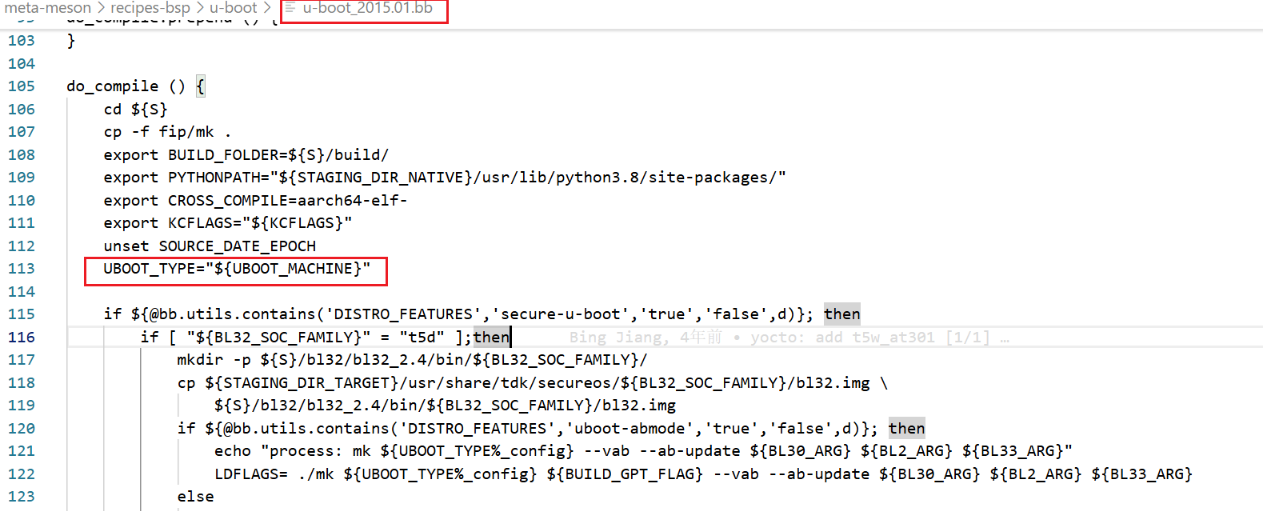

As shown in the figure below, the assignment of the UBOOT_TYPE variable is located in the meta-meson/recipes-bsp/u-boot/u-boot-2015.01.bb file. After UBOOT_TYPE is assigned a value, the DEFCONFIG variable will also be assigned a value through string concatenation.

image1263×511 151 KB

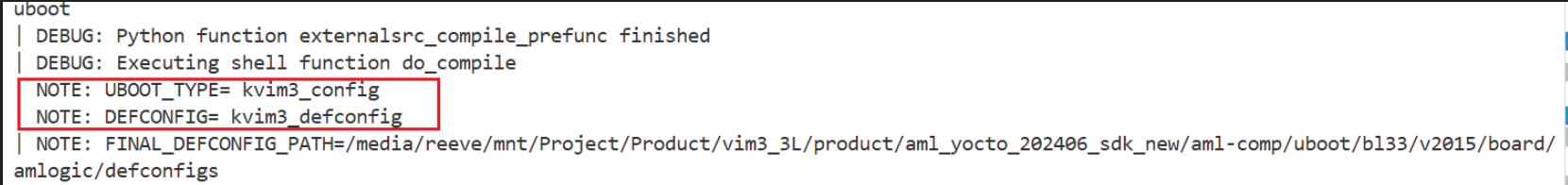

The final assigned value is printed via bbnote, as shown in the figure below.

image1661×197 71.2 KB

JJ1997 · September 10, 2025, 7:54am

Hello @Naruto-China, thank you very much for your detailed reply. I understand the points you explained.
However, I think the problem is here.

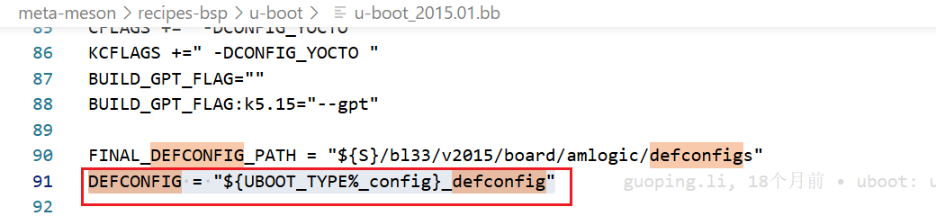

The FINAL_DEFCONFIG_PATH in line 90 in u-boot_2015.01.bb is defined as ${S}/bl33/v2015/board/amlogic/defconfigs not ${S}/bl33/v2015/board/khadas/defconfigs. As shown below.

github.com/khadas/meta-meson

recipes-bsp/u-boot/u-boot_2015.01.bb

yocto-kirkstone-202406-smarthome



          export BL30_ARG = ""
          export BL2_ARG = ""

          BL33_ARG = "${@bb.utils.contains('DISTRO_FEATURES','AVB','--avb2','',d)}"

          CFLAGS +=" -DCONFIG_YOCTO "
          KCFLAGS +=" -DCONFIG_YOCTO "
          BUILD_GPT_FLAG=""
          BUILD_GPT_FLAG:k5.15="--gpt"

          FINAL_DEFCONFIG_PATH = "${S}/bl33/v2015/board/amlogic/defconfigs"
          DEFCONFIG = "${UBOOT_TYPE%_config}_defconfig"

          do_compile:prepend () {
              cfg_files=$(find ${WORKDIR} -maxdepth 1 -name "*.cfg")
              if [ -n "$cfg_files" ]; then
                  UBOOT_TYPE="${UBOOT_MACHINE}"
                  if [ ! -f ${FINAL_DEFCONFIG_PATH}/${DEFCONFIG}.temp ]; then
                      mv ${FINAL_DEFCONFIG_PATH}/${DEFCONFIG} ${FINAL_DEFCONFIG_PATH}/${DEFCONFIG}.temp
                  fi

This makes the do_compile:prepend does not work (if we have additional .cfg file to be merged by merge_config.sh, we will run do_compile:prepend).
Other point, the DEFCONFIG is defined (line 91) before the UBOOT_TYPE is defined in do_compile:prepend and do_compile, so it’s empty for do_compile:prepend and do_compile ?

Naruto-China · September 10, 2025, 9:23am

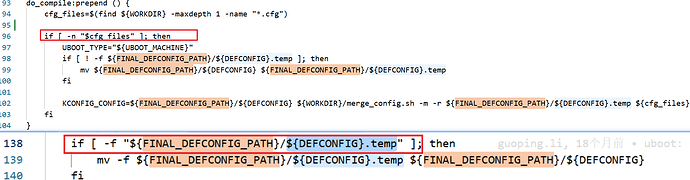

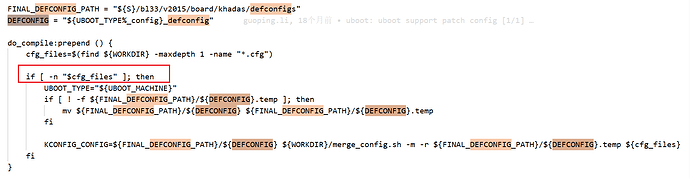

In the do_compiletask, after UBOOT_TYPEis assigned a value (line 114), using bbnoteto print and verify confirms that the variable contains a value. The figure below shows my print result:

image1660×196 71.1 KB
DEFCONFIGis merely variable initialization; even if defined before UBOOT_TYPE, it does not matter. After UBOOT_TYPEis assigned a value (line 114 or line 97), DEFCONFIGwill likewise contain a valid value. You can verify this by adding a bbnoteprint statement after line 114 to observe the result.

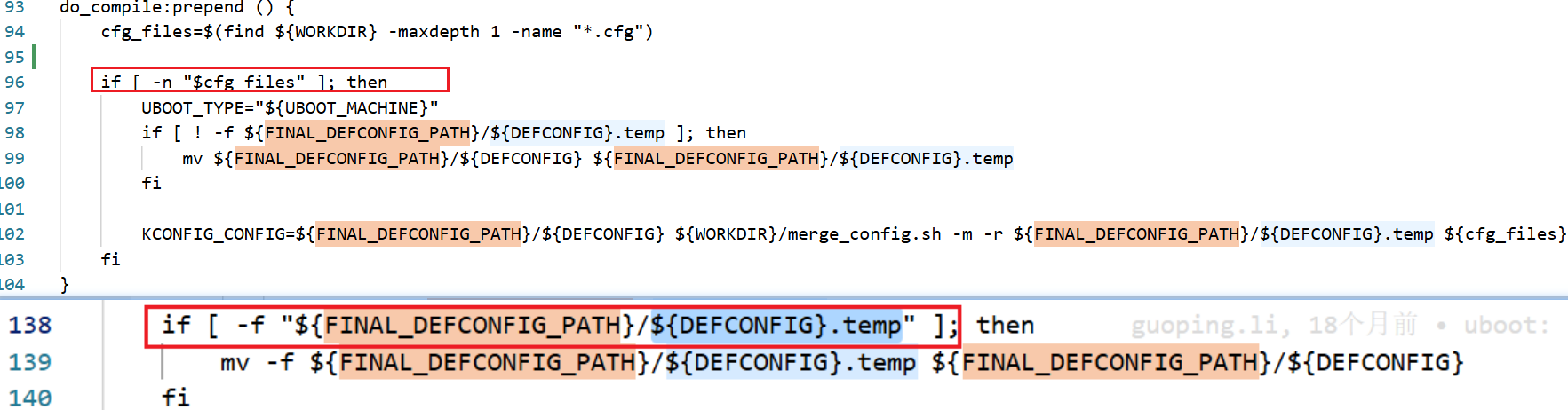

In the do_compile:prepend function, both UBOOT_TYPE and DEFCONFIG are indeed empty. This is due to the cfg_files variable being empty, as shown in the figure below.

image1740×449 48.3 KB
The FINAL_DEFCONFIG_PATH variable indeed needs to be modified to ${S}/bl33/v2015/board/khadas/defconfigs . However, since no cfg files exist and there is no ${DEFCONFIG}.temp file, even an incorrect directory assignment here does not affect functionality.

image1765×462 113 KB

JJ1997 · September 10, 2025, 10:10am

@Naruto-China ,OK, I need to modify these elements because I enabled absystem feature, and there’s a cfg file that needs to be merged.

Could you tell me where the ${S}/bl33/v2015/board/khadas/defconfigs is defined to be used? maybe in another file? This is the final defconfigs to be used or there is other gerneal config?

In fact, I want to update u-boot config, but I’m not sure where to do this, as the menuconfig is not available in this version 2015.

Naruto-China · September 11, 2025, 9:28am

The kvim3_defconfig file in the directory ${S}/bl33/v2015/board/khadas/defconfigs/ is the u-boot config for the VIM3 board.

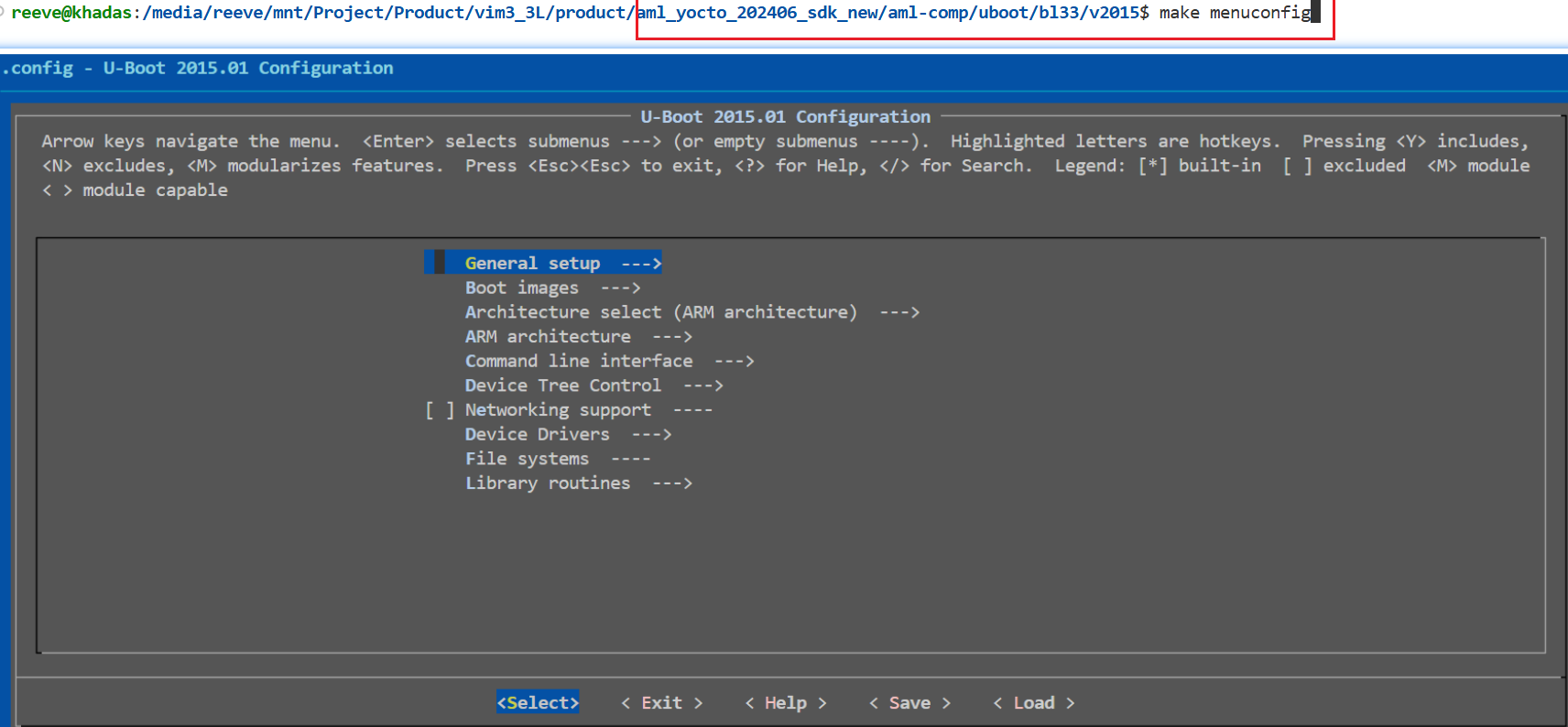

As shown in the figure below, navigate to the ${S}/bl33/v2015 directory and execute make menuconfig to launch the config menu.

image1712×794 123 KB

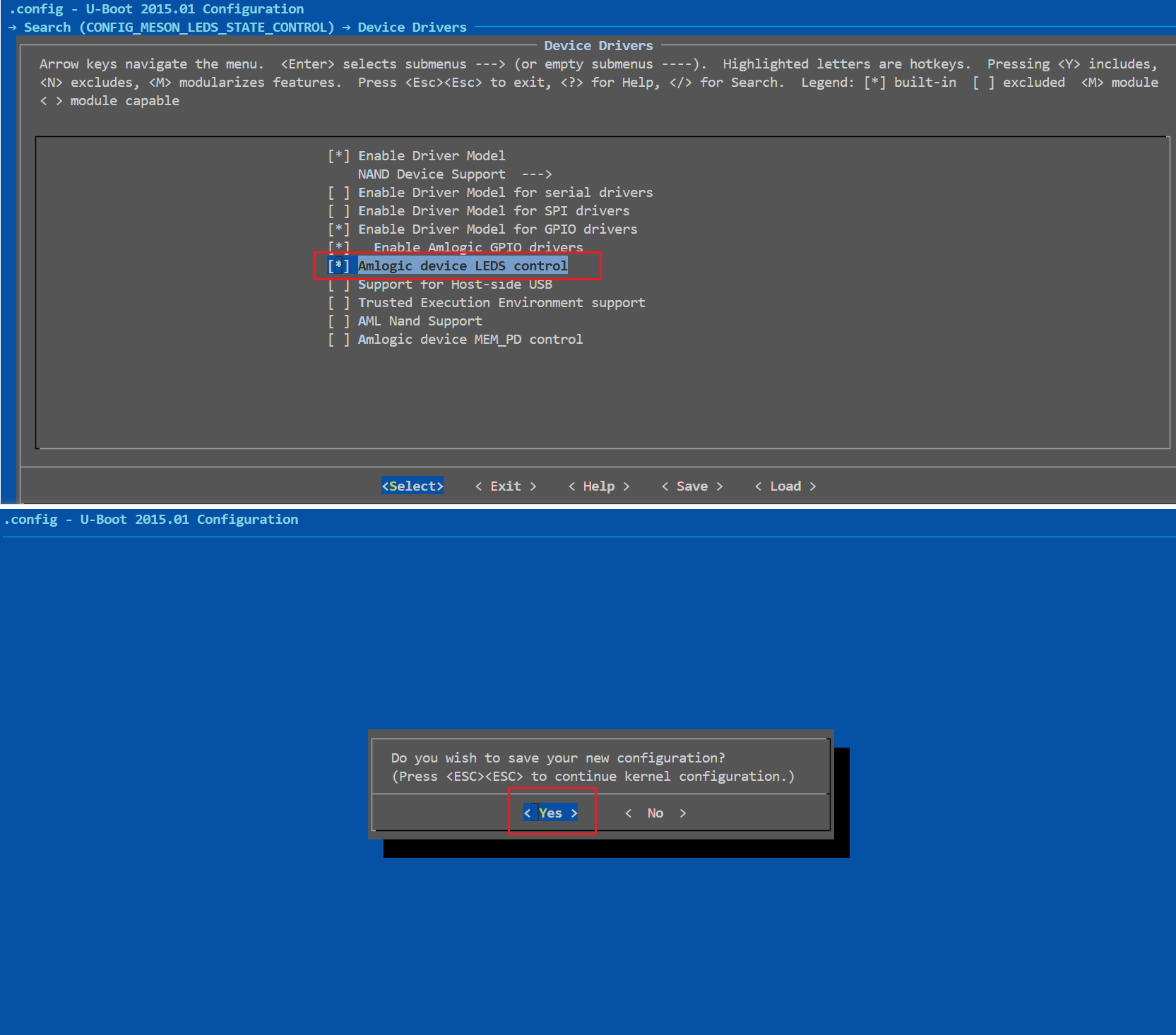

For example, to enable CONFIG_MESON_LEDS_STATE_CONTROL , select the option "Amlogic device LEDS control" as shown in the figure below, then exit and save the configuration.

image1665×1466 127 KB
As shown in the figure below, navigate to the ${S}/bl33/v2015 directory and execute make savedefconfig to save the configuration changes into the defconfig file.
As shown in the figure below, navigate to the ${S}/bl33/v2015/build/ directory and copy the contents of the generated defconfig file to kvim3_defconfig . This action updates the U-Boot configuration for the target board.

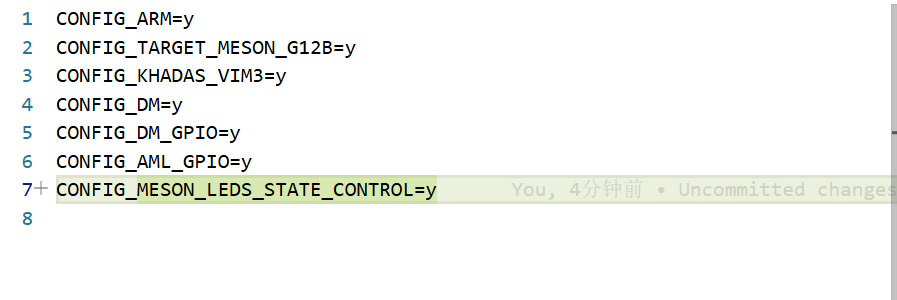

The updated kvim3_defconfig file is shown in the figure below.

image897×300 18.1 KB

JJ1997 · October 24, 2025, 12:03pm

Hi @Naruto-China @numbqq , could you please confirm whether the NPU is fully supported in the Yocto SDK? I was able to find /dev/galcore in Yocto, but our application, which uses the NPU and works well on fenix Ubuntu 20.04/22.04, does not function correctly in Yocto.
I’m still debugging in our application to find more information, when it runs inference, it restarts without error inside application, there should be an issue with an external driver or missing support NPU. Do you know if there are any additional kernel options, drivers, or modules that need to be enabled or mounted for the NPU to work?

I updated the permissions of /dev/galcore from:

crw------- 1 root root 199, 0 /dev/galcore

to

crwxrwxrwx 1 root root 199, 0 /dev/galcore

to avoid error of “Failed to open device”, but this did not resolve the issue.

By the way, it seems the module 4G Quectel does not work in Yocto, same steps in this documation VIM3/3L EM06 LTE 4G Module [Khadas Docs] works for ubuntu

JJ1997 · October 29, 2025, 3:39pm

Hello @numbqq, any feedback regarding the NPU support in yocto? I tested NPU demo using KSNN KSNN Usage [Khadas Docs] . but encountered a library error. Not found libGL.so.1.

(venv) root@mesong12b-kvim3-k5:~/ksnn/examples/keras# python3 xception.py --model ./models/VIM3/xception_uint8.nb --library ./libs/libnn_xception_uint8.so --picture data/goldfish_299x299.jpg --level 0
Traceback (most recent call last):
File “/home/root/ksnn/examples/keras/xception.py”, line 5, in
from ksnn.api import KSNN
File “/home/root/ksnn/venv/lib/python3.10/site-packages/ksnn/api.py”, line 6, in
import cv2 as cv
File “/home/root/ksnn/venv/lib/python3.10/site-packages/cv2/init.py”, line 181, in
bootstrap()
File “/home/root/ksnn/venv/lib/python3.10/site-packages/cv2/init.py”, line 153, in bootstrap
native_module = importlib.import_module(“cv2”)
File “/usr/lib/python3.10/importlib/init.py”, line 126, in import_module
return _bootstrap._gcd_import(name[level:], package, level)
ImportError: libGL.so.1: cannot open shared object file: No such file or directory

If I uninstall opencv-python and install opencv-python-headless, the demo can work. However, to avoid rebuilding the entire environment, since OpenCV is widely used—I’d like to add the package directly in Yocto.

When I try, I get an error while installing mesa-gl, because in yocto sdk, PREFERRED_PROVIDER_virtual/libgl is set to libgles-eabihf-gondul-wayland-drm.

ERROR: Nothing RPROVIDES ‘mesa-gl’ (but /home/jichen/vs_yocto_vim3/sources/meta-aml-cfg/recipes-core/images/amlogic-yocto.bb RDEPENDS on or otherwise requires it)
mesa-gl was skipped: PREFERRED_PROVIDER_virtual/libgl set to libgles-eabihf-gondul-wayland-drm, not mesa-gl

Is libgles-eabihf-gondul-wayland-drm necessary? Do you have any idea how to modify PREFERRED_PROVIDER_virtual/libgl to resolve this?

numbqq · October 30, 2025, 1:17am

Hello @Naruto-China

Please follow up.

JJ1997 · October 30, 2025, 11:52am

@Naruto-China The following required libraries are also missing: libGLdispatch.so.0 libGL.so.1 libGLX.so.0 libX11.so.6 libXau.so.6 libxcb.so.1 libXdmcp.so.6. I think OpenGL/X11 need to be installed ?

numbqq · October 31, 2025, 1:13am

Please note that not all NPU demos are available for Yocto, if the NPU demo need to display the picture or video then it may not work on Yocto, you have to handle the display yourself on Yocto.

JJ1997 · October 31, 2025, 8:23am

Yes, but opencv also use libraries. For example, KSNN demo ( KSNN Usage [Khadas Docs] ) does not have display. However, I was able to run the demo by manually copying the missing libraries from Ubuntu.

JJ1997 · November 3, 2025, 12:00pm

Hello @Naruto-China, I’m trying to set up a 4G connection in Yocto, but it seems that the wwan interface cannot be associated with the GSM connection. Do you have any guidance on how to configure this properly?

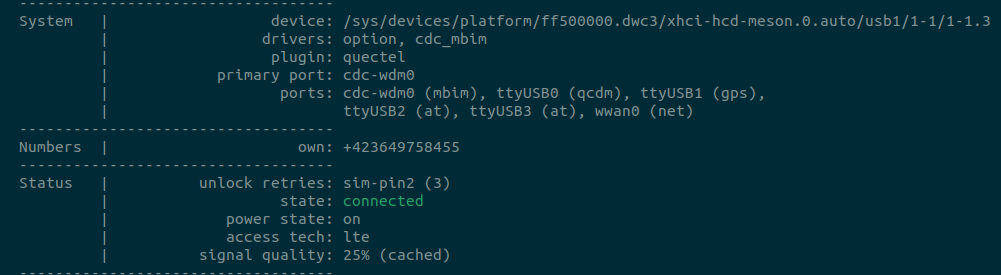

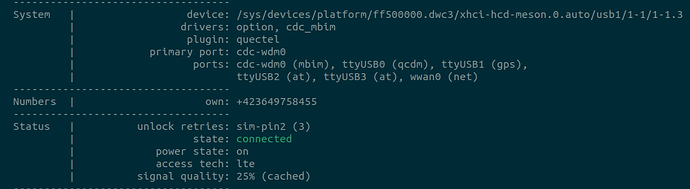

I can configure the connection using mmcli, but there is no interface associated (wwan0) for the 4G connection.
