Vim3 4GB - dead all

Electr1 · July 8, 2020, 2:22pm

I do not mind of them, I need your approval

Vladimir.v.v · July 8, 2020, 2:24pm

you already know my answer, please do not make me laugh

Electr1 · July 8, 2020, 2:29pm

alright buddy, I will take your answer as a yes

Vladimir.v.v · July 8, 2020, 2:31pm

100%, buddy !!!

acoban · May 8, 2023, 8:18pm

Adding some pepper here.
I’m not exactly sure what happened with my board, but after erasing eMMC with Krescue and installing Armbian 23.02 the board stopped booting up at all after powering off the board. After some attempts realized that pushing 3 times function button allows me to boot either from SD card or eMMC. So I boot up the board from eMMC each time using the function button.
Could you please help me understand what is the real issue and how to fix it?

Electr1 · May 9, 2023, 12:33am

Hi @acoban, if you have installed armbian, make sure there is no discrepancies with the contents of the SPI flash. What OS did you have installed previously ?

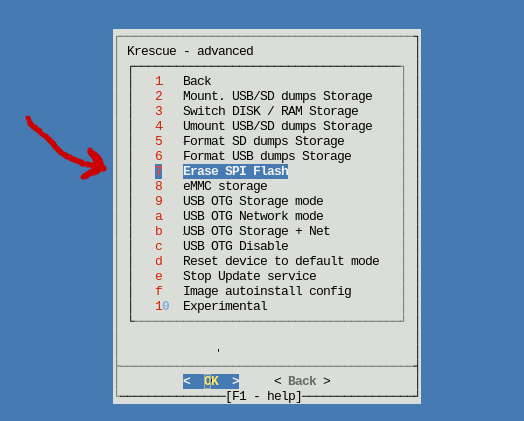

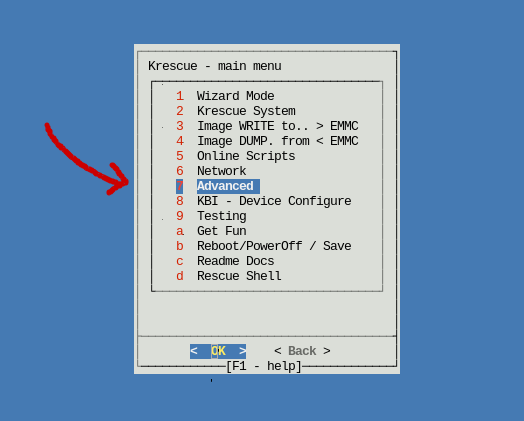

Try erasing the SPI flash through these steps:

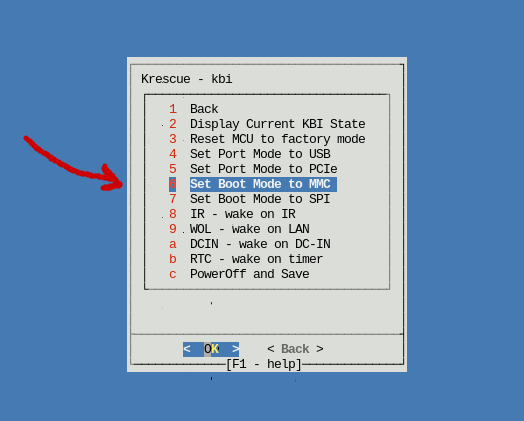

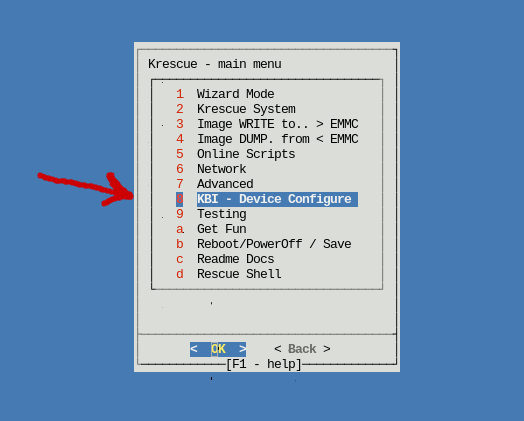

And setting eMMC as priority boot:

device should be able to boot now.

Cheers
