Hello @JietChoo ,
Sorry, now we have not ready text detection model.
Will there be one soon?
Hi Louis, any updates on text detection model?
Hello @JietChoo
About the new demo we need time to finish, we will update you once we finished.
Thank you, just wondering expected how long will it be done?
Hi, any updates on this?
Hello, good day, any update on this?
Hello Good day, any updates?
Hello @JietChoo ,
Sorry for late reply. We meet many problem when convert PPOCR model and infer on VIM4. Now the latest firmware which supports PPOCR is undergoing final testing. The firmware and KSNN Text Recognition will be released next week.
2 Likes
Hi Louis, Hooray! Thank you for the update! Looking forward to it!
Hello @JietChoo ,

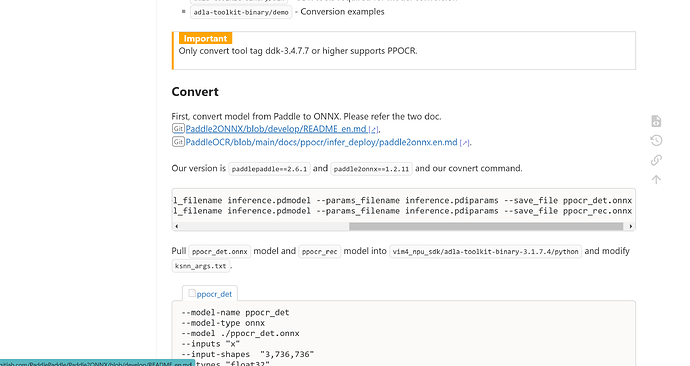

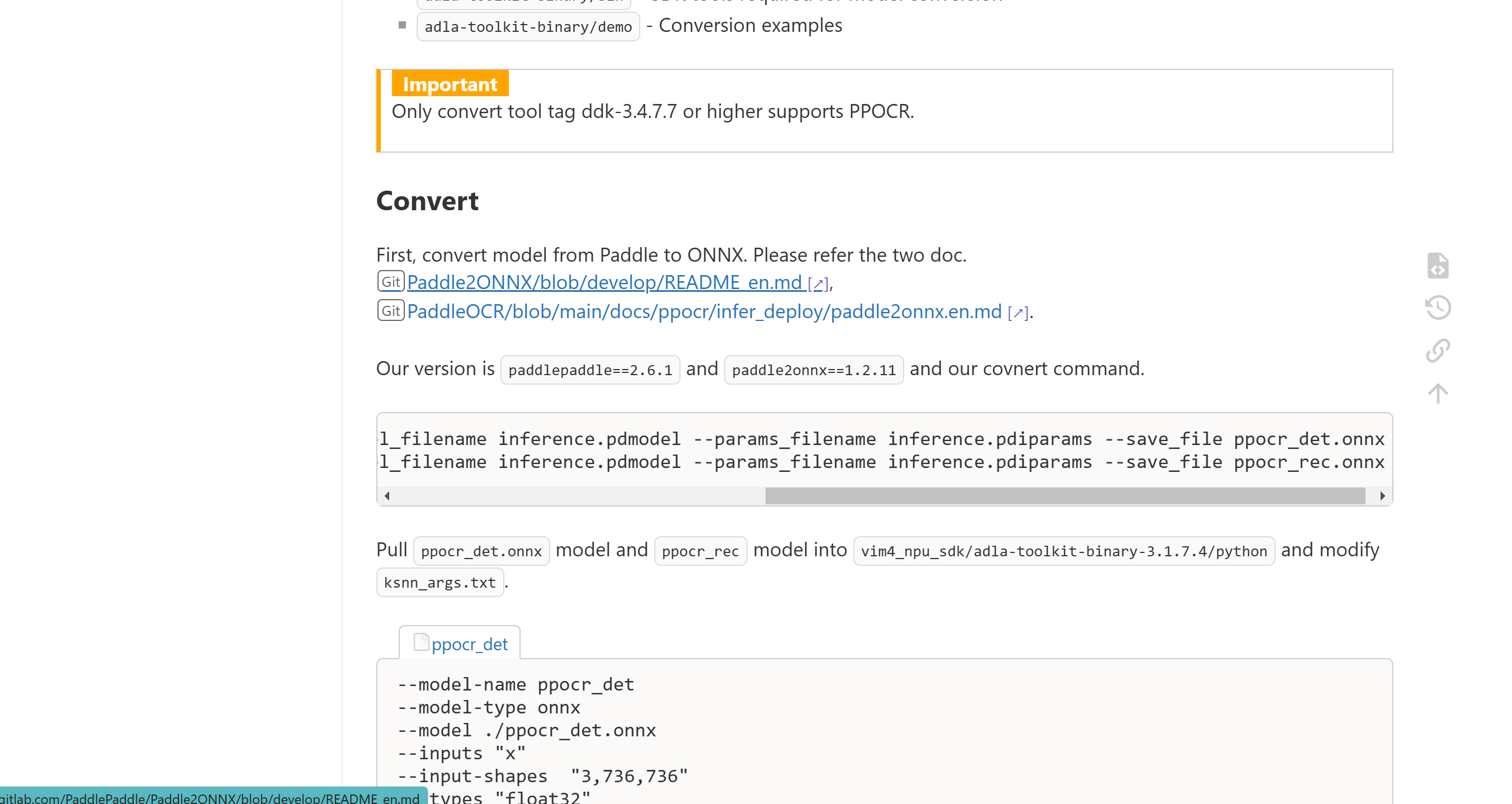

The latest KSNN Demo has updated. Please use the latest firmware and refer this doc to run PPOCR Demo.

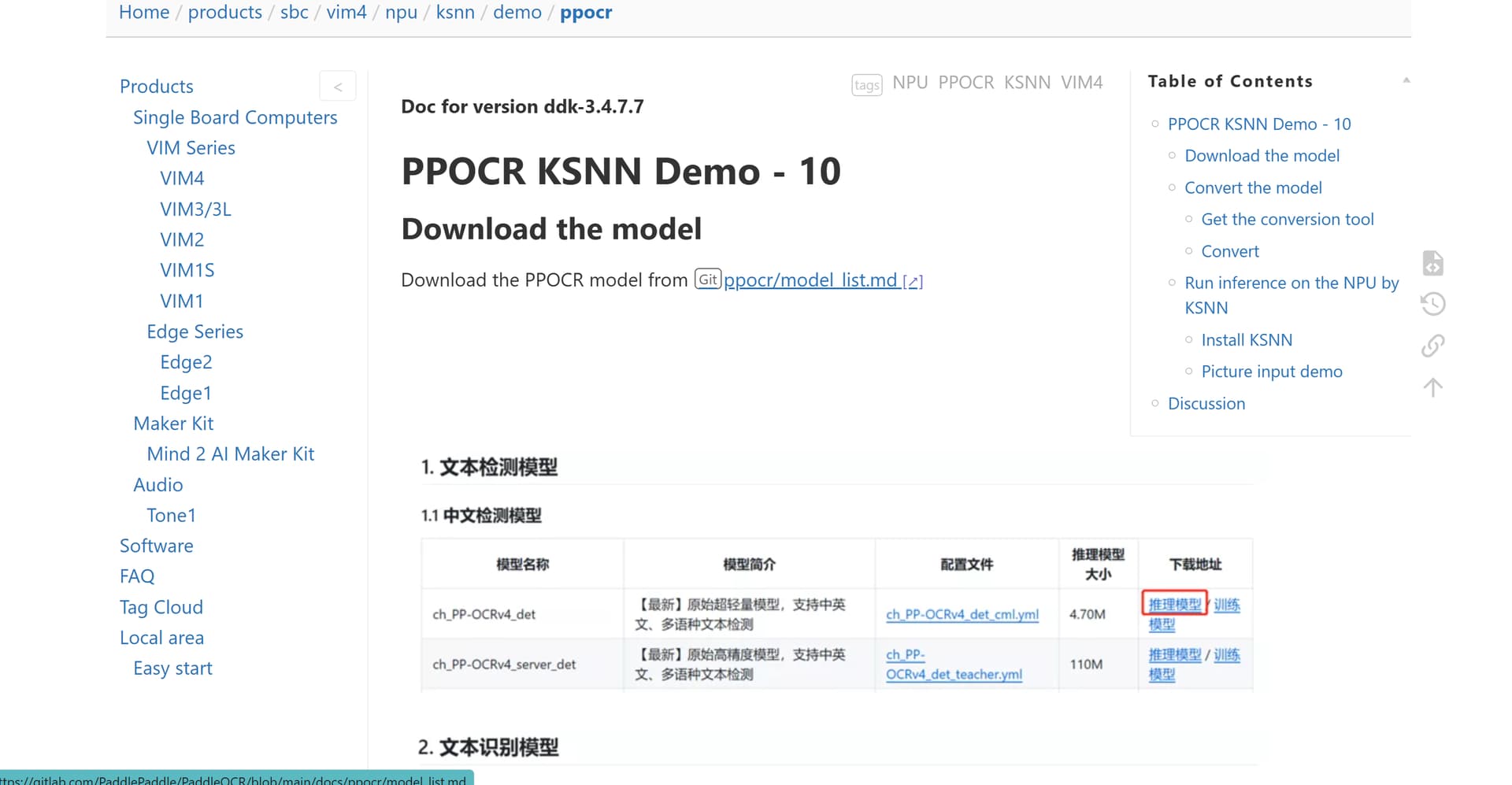

PPOCR KSNN Demo - 10 [Khadas Docs]
1 Like
Hooray! Thank you Louis! Will look into it!
Hello @JietChoo ,

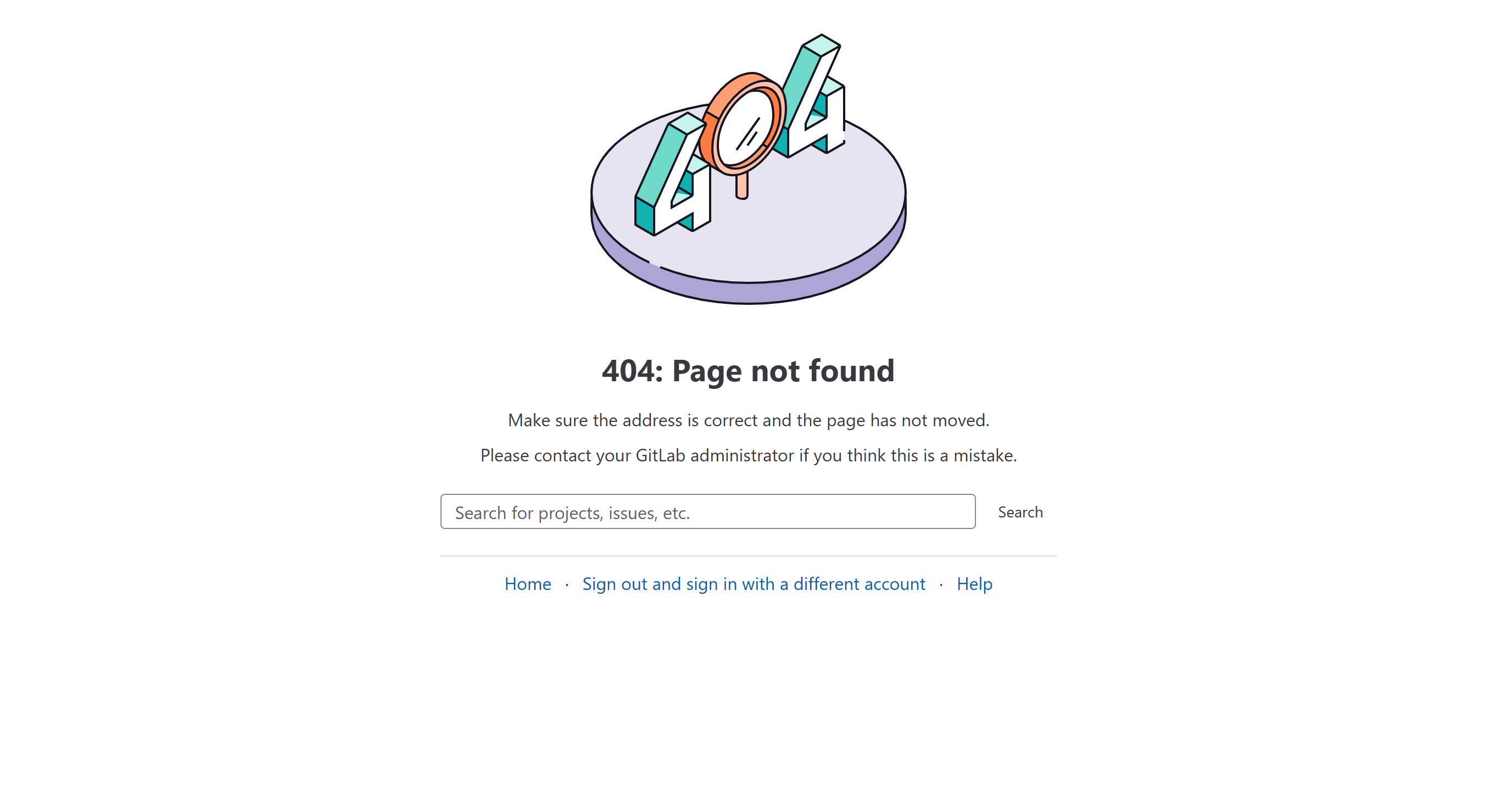

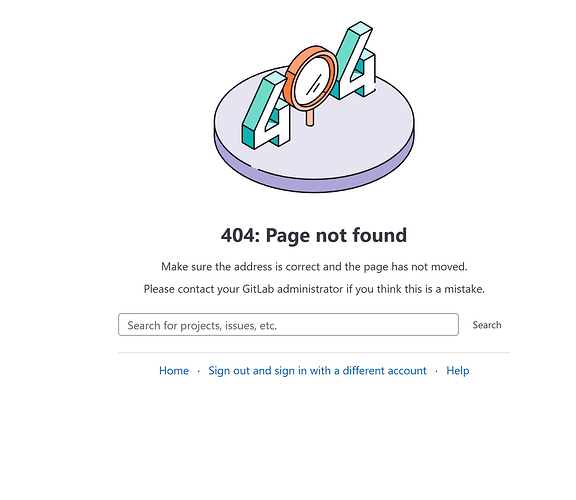

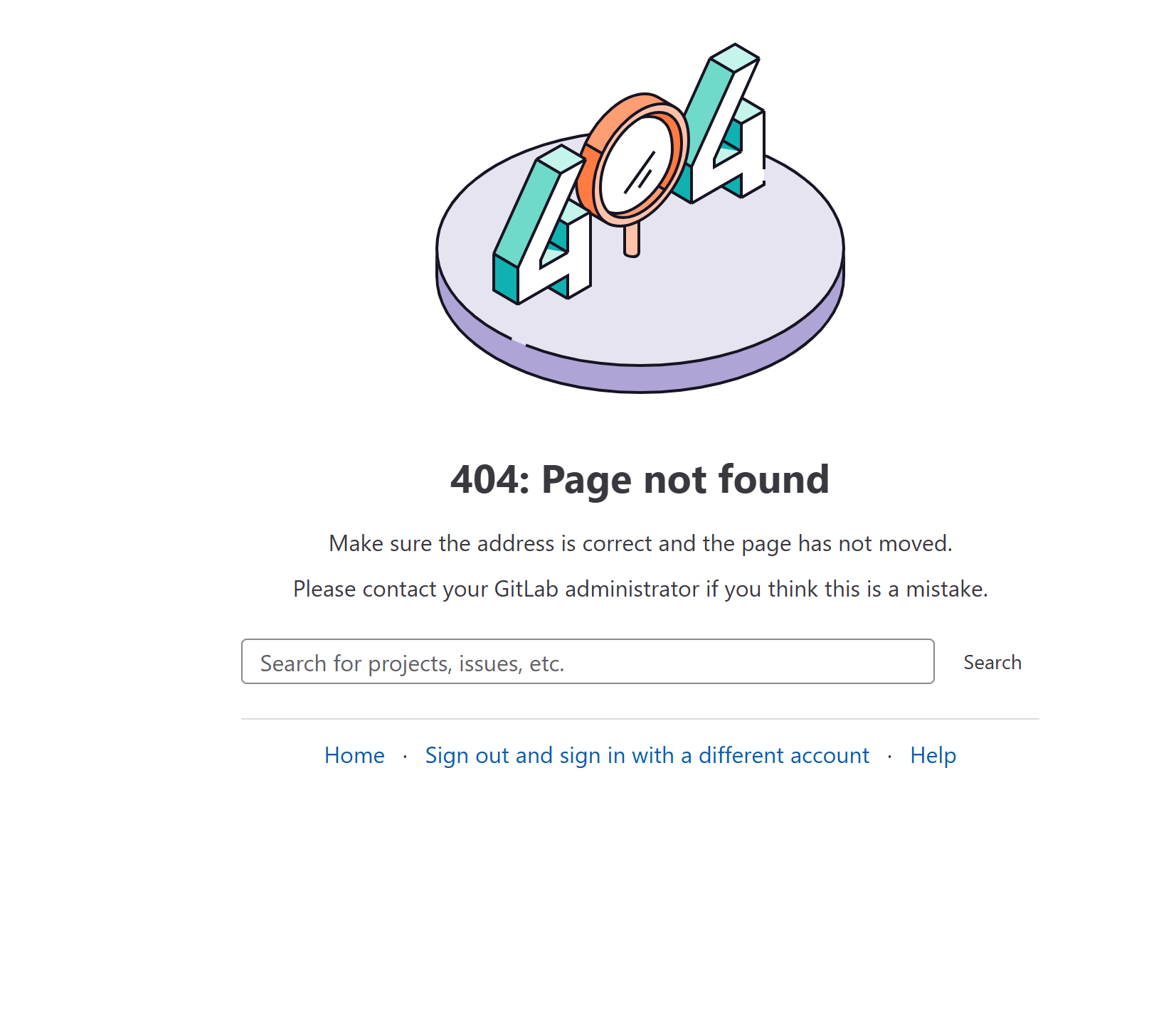

Sorry, the link is error. Now corrected and try again.
Hi Louis, i ran the follow code
python3 ppocr-cap.py --det_model ./models/VIM4/ppocr_det_int8.adla --det_library ./libs/libnn_ppocr_det.so --rec_model ./models/VIM4/ppocr_rec_int16.adla --rec_library ./libs/libnn_ppocr_rec.so --device 63
And got this result
|---+ KSNN Version: v1.4 +---|
Start init neural network ...
adla usr space 1.2.0.5
Segmentation fault
Source code
Another thing,
When i try installing python3-env
sudo apt install python3-venv
I go this error
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following additional packages will be installed:
python3.12-venv
The following NEW packages will be installed:
python3-venv python3.12-venv
0 upgraded, 2 newly installed, 0 to remove and 114 not upgraded.
Need to get 5,678 B/6,712 B of archives.
After this operation, 34.8 kB of additional disk space will be used.
Do you want to continue? [Y/n]
Ign:1 http://ports.ubuntu.com noble-security/universe arm64 python3.12-venv arm64 3.12.3-1ubuntu0.2
Err:1 http://ports.ubuntu.com noble-security/universe arm64 python3.12-venv arm64 3.12.3-1ubuntu0.2
404 Not Found [IP: 185.125.190.39 80]
E: Failed to fetch http://ports.ubuntu.com/pool/universe/p/python3.12/python3.12-venv_3.12.3-1ubuntu0.2_arm64.deb 404 Not Found [IP: 185.125.190.39 80]
E: Unable to fetch some archives, maybe run apt-get update or try with --fix-missing?
Hello @JietChoo ๏ผ
Only the latest firmware supports this demo. The latest firmware will print adla usr space 1.4.0.5.
https://dl.khadas.com/products/vim4/firmware/ubuntu/emmc/ubuntu-24.04/vim4-ubuntu-24.04-server-linux-5.15-fenix-1.7.3-241129-emmc.img.xz
And before run install python3-venv, have you run sudo apt update?
Hi Louis,
I have erased the OS Image from VIM4, reinstall the latest gnome version. And follow the setup again. I have also downloaded the ksnn ppocr demo, ran a virtual environment, pip3 install necessary pacakges and run it with
python3 ppocr-cap.py --det_model ./models/VIM4/ppocr_det_int8.adla --det_library ./libs/libnn_ppocr_det.so --rec_model ./models/VIM4/ppocr_rec_int16.adla --rec_library ./libs/libnn_ppocr_rec.so --device 63
And got the result as below.
|---+ KSNN Version: v1.4.1 +---|
Start init neural network ...
adla usr space 1.4.0.2
adla usr space 1.4.0.2
Done.
Traceback (most recent call last):
File "/home/khadas/ksnn-vim4/examples/ppocr/ppocr-cap.py", line 104, in <module>
det_img = cv.resize(orig_img, (736, 736)).astype(np.float32)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
cv2.error: OpenCV(4.10.0) /io/opencv/modules/imgproc/src/resize.cpp:4152: error: (-215:Assertion failed) !ssize.empty() in function 'resize'
Not sure whether if the device number --device 63. In the previous version it was 63. I have not try it with cv.VideoCapture(โ{pipeline}โ,cv.CAP_GSTREAMER) yet
Hello @JietChoo ,
Try again after deleting the two lines.
cap.set(3,1920)
cap.set(4,1080)
And please make sure your camera device is still 63.
Hi Louis,
I have tried commenting the two lines out, and run it with device 63, but still have the same error.
[ERROR:0@0.184] global obsensor_uvc_stream_channel.cpp:158 getStreamChannelGroup Camera index out of range
Traceback (most recent call last):
File "/home/khadas/ksnn-vim4/examples/ppocr/ppocr-cap.py", line 103, in <module>
det_img = cv.resize(orig_img, (736, 736)).astype(np.float32)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
cv2.error: OpenCV(4.10.0) /io/opencv/modules/imgproc/src/resize.cpp:4152: error: (-215:Assertion failed) !ssize.empty() in function 'resize'
GStreamer not working as the GSTREAMER Video I/O in cv.getBuildInformation() has a NO value.
General configuration for OpenCV 4.10.0 =====================================
Version control: 4.10.0-dirty
Platform:
Timestamp: 2024-06-17T18:00:16Z
Host: Linux 5.3.0-28-generic aarch64
CMake: 3.29.5
CMake generator: Unix Makefiles
CMake build tool: /bin/gmake
Configuration: Release
CPU/HW features:
Baseline: NEON FP16
Dispatched code generation: NEON_DOTPROD NEON_FP16 NEON_BF16
requested: NEON_FP16 NEON_BF16 NEON_DOTPROD
NEON_DOTPROD (1 files): + NEON_DOTPROD
NEON_FP16 (2 files): + NEON_FP16
NEON_BF16 (0 files): + NEON_BF16
C/C++:
Built as dynamic libs?: NO
C++ standard: 11
C++ Compiler: /opt/rh/devtoolset-10/root/usr/bin/c++ (ver 10.2.1)
C++ flags (Release): -Wl,-strip-all -fsigned-char -W -Wall -Wreturn-type -Wnon-virtual-dtor -Waddress -Wsequence-point -Wformat -Wformat-security -Wmissing-declarations -Wundef -Winit-self -Wpointer-arith -Wshadow -Wsign-promo -Wuninitialized -Wsuggest-override -Wno-delete-non-virtual-dtor -Wno-comment -Wimplicit-fallthrough=3 -Wno-strict-overflow -fdiagnostics-show-option -pthread -fomit-frame-pointer -ffunction-sections -fdata-sections -fvisibility=hidden -fvisibility-inlines-hidden -O3 -DNDEBUG -DNDEBUG
C++ flags (Debug): -Wl,-strip-all -fsigned-char -W -Wall -Wreturn-type -Wnon-virtual-dtor -Waddress -Wsequence-point -Wformat -Wformat-security -Wmissing-declarations -Wundef -Winit-self -Wpointer-arith -Wshadow -Wsign-promo -Wuninitialized -Wsuggest-override -Wno-delete-non-virtual-dtor -Wno-comment -Wimplicit-fallthrough=3 -Wno-strict-overflow -fdiagnostics-show-option -pthread -fomit-frame-pointer -ffunction-sections -fdata-sections -fvisibility=hidden -fvisibility-inlines-hidden -g -O0 -DDEBUG -D_DEBUG
C Compiler: /opt/rh/devtoolset-10/root/usr/bin/cc
C flags (Release): -Wl,-strip-all -fsigned-char -W -Wall -Wreturn-type -Waddress -Wsequence-point -Wformat -Wformat-security -Wmissing-declarations -Wmissing-prototypes -Wstrict-prototypes -Wundef -Winit-self -Wpointer-arith -Wshadow -Wuninitialized -Wno-comment -Wimplicit-fallthrough=3 -Wno-strict-overflow -fdiagnostics-show-option -pthread -fomit-frame-pointer -ffunction-sections -fdata-sections -fvisibility=hidden -O3 -DNDEBUG -DNDEBUG
C flags (Debug): -Wl,-strip-all -fsigned-char -W -Wall -Wreturn-type -Waddress -Wsequence-point -Wformat -Wformat-security -Wmissing-declarations -Wmissing-prototypes -Wstrict-prototypes -Wundef -Winit-self -Wpointer-arith -Wshadow -Wuninitialized -Wno-comment -Wimplicit-fallthrough=3 -Wno-strict-overflow -fdiagnostics-show-option -pthread -fomit-frame-pointer -ffunction-sections -fdata-sections -fvisibility=hidden -g -O0 -DDEBUG -D_DEBUG
Linker flags (Release): -L/ffmpeg_build/lib -Wl,--gc-sections -Wl,--as-needed -Wl,--no-undefined
Linker flags (Debug): -L/ffmpeg_build/lib -Wl,--gc-sections -Wl,--as-needed -Wl,--no-undefined
ccache: YES
Precompiled headers: NO
Extra dependencies: /lib64/libopenblas.so Qt5::Core Qt5::Gui Qt5::Widgets Qt5::Test Qt5::Concurrent /usr/local/lib/libpng.so /lib64/libz.so dl m pthread rt
3rdparty dependencies: libprotobuf ade ittnotify libjpeg-turbo libwebp libtiff libopenjp2 IlmImf tegra_hal
OpenCV modules:
To be built: calib3d core dnn features2d flann gapi highgui imgcodecs imgproc ml objdetect photo python3 stitching video videoio
Disabled: world
Disabled by dependency: -
Unavailable: java python2 ts
Applications: -
Documentation: NO
Non-free algorithms: NO
GUI: QT5
QT: YES (ver 5.15.13 )
QT OpenGL support: NO
GTK+: NO
VTK support: NO
Media I/O:
ZLib: /lib64/libz.so (ver 1.2.7)
JPEG: build-libjpeg-turbo (ver 3.0.3-70)
SIMD Support Request: YES
SIMD Support: YES
WEBP: build (ver encoder: 0x020f)
PNG: /usr/local/lib/libpng.so (ver 1.6.43)
TIFF: build (ver 42 - 4.6.0)
JPEG 2000: build (ver 2.5.0)
OpenEXR: build (ver 2.3.0)
HDR: YES
SUNRASTER: YES
PXM: YES
PFM: YES
Video I/O:
DC1394: NO
FFMPEG: YES
avcodec: YES (59.37.100)
avformat: YES (59.27.100)
avutil: YES (57.28.100)
swscale: YES (6.7.100)
avresample: NO
GStreamer: NO
v4l/v4l2: YES (linux/videodev2.h)
Parallel framework: pthreads
Trace: YES (with Intel ITT)
Other third-party libraries:
Lapack: YES (/lib64/libopenblas.so)
Eigen: NO
Custom HAL: YES (carotene (ver 0.0.1, Auto detected))
Protobuf: build (3.19.1)
Flatbuffers: builtin/3rdparty (23.5.9)
OpenCL: YES (no extra features)
Include path: /io/opencv/3rdparty/include/opencl/1.2
Link libraries: Dynamic load
Python 3:
Interpreter: /opt/python/cp39-cp39/bin/python3.9 (ver 3.9.19)
Libraries: libpython3.9m.a (ver 3.9.19)
Limited API: YES (ver 0x03060000)
numpy: /home/ci/.local/lib/python3.9/site-packages/numpy/_core/include (ver 2.0.0)
install path: python/cv2/python-3
Python (for build): /opt/python/cp39-cp39/bin/python3.9
Java:
ant: NO
Java: NO
JNI: NO
Java wrappers: NO
Java tests: NO
Install to: /io/_skbuild/linux-aarch64-3.9/cmake-install
-----------------------------------------------------------------
