Manjaro Linux - KDE-Plasma & XFCE for VIM1

ravelo · July 21, 2019, 8:29pm

did you include a copy of my boot.ini in the image ?

Spikerguy · July 21, 2019, 8:30pm

No. As I dont have it.

ravelo · July 21, 2019, 8:31pm

edit:

Spikerguy · July 21, 2019, 8:34pm

I will go through it tomorrow and check if it is necessary to be included in boot to make it work with Linux OS in EMMC.

Thanks

ravelo · July 21, 2019, 8:36pm

I’m beeing preparing my SD card with your latest image on it…

Spikerguy · July 21, 2019, 8:37pm

All the best

ravelo · July 21, 2019, 8:41pm

and is the / permission also fixed ?
edit: I might mix w/ noProxy’s distro…

Spikerguy · July 21, 2019, 8:42pm

I dont have any permission issues with the current build

ravelo · July 21, 2019, 9:34pm

my boot.ini injected, distro booted, setup done, and after reboot, no trace of wlan0 ,
so I needed to manually install the 5.2.x wifi drivers ( Wifi-firmware-linux-5-2-0.1-1-aarch64.pkg.tar.xz) as before,
but that reintroduced the DNS issue, what a mess! I reflashed.
Then I had to do the systemctl disable + reboot to regain control over the DNS situation

but still no hdmi soundcard detected by aplay…

Spikerguy · July 22, 2019, 5:34am

There should be no DNS issue as it was resolved by the manjaro team in yesterdays built.

I guess there is something to do with the boot.ini file.

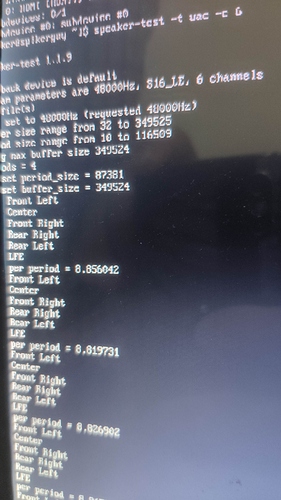

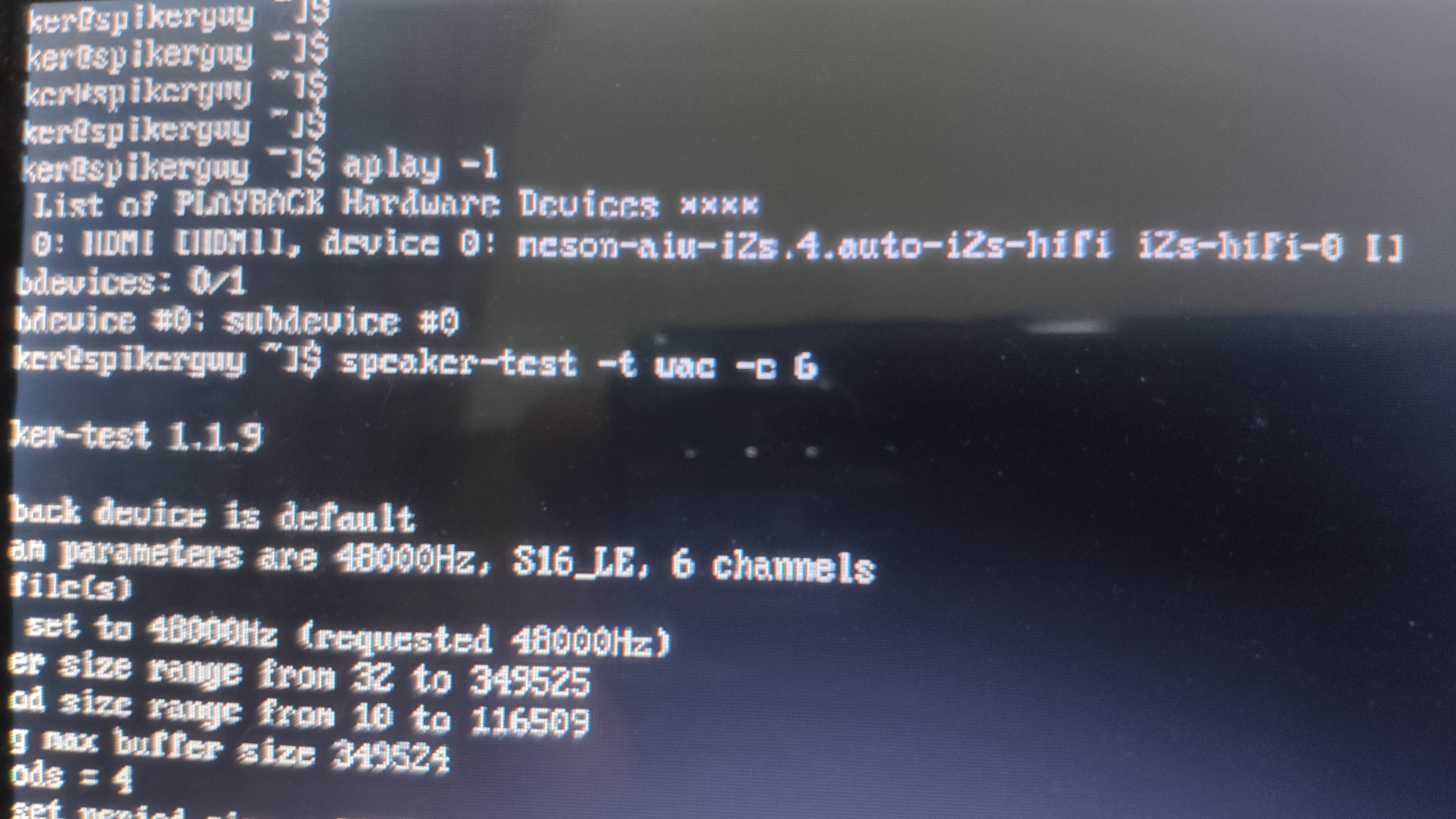

Screenshots below

ravelo · July 22, 2019, 5:48am

which dtb file do you use ?

Spikerguy · July 22, 2019, 5:59am

The khadas vim one. I dont have the exact file name now. But its the same from the tutorial link.

ravelo · July 22, 2019, 6:03am

new link for my boot.ini

i use this dtb:
/dtb/meson-gxl-s905x-khadas-vim.dtb
you provided in your image

Spikerguy · July 22, 2019, 1:55pm

Any luck with what you wanted to achieve ?

ravelo · July 22, 2019, 2:11pm

no, unfortunately still cannot understand why audio does not work here, using same image as you, but 2 different ways to start it

Spikerguy · July 22, 2019, 3:01pm

One is by editing boot.ini and second is by default process right ? using direct boot with 4.19 kernel of Ubuntu.

Maybe you can Flash Android and test Manjaro build if everything is fine with you then will create script to install Manjaro in Emmc.

ravelo · July 22, 2019, 3:17pm

I still don’t explain which process is the real default process : with or without a boot.ini,
we (you , @_no_proxy & me ) are supposed to all have the non multiboot ubuntu Khadas official firmware (and uboot 2015) in our EMMCs but we do not have the same behavior at boot time

_no_proxy · July 22, 2019, 3:25pm

You can echo somthing in boot.ini.

ravelo · July 22, 2019, 3:43pm

I in fact echo a message at the beginning of the boot.ini file, and it gets printed on screen for sure.
When I don’t put that file in the SD, only the kernel on the EMMC is used, then / is anyway mounted off the SDcard, giving an unexpected but “working” marriage

_no_proxy · July 25, 2019, 4:33am

Your image has the same problem as my 5.2.2 kernel, I think it’s a boot problem.
