屏幕分辨率设置为1024x768，竖屏显示异常

gaohongjun · June 20, 2024, 3:47am

Which system do you use? Android, Ubuntu, OOWOW or others?

Android

Which version of system do you use? Please provide the version of the system here:

VIM3_Pie_V210908

Please describe your issue below:

1、Vim3开发板通过HDMI连接分辨率为1024x768的显示屏；
2、开发板分辨率设置为1024x768；
3、adb连接开发板，adb shell进入命令行，wm size 1024x768，density设置为160
4、横屏显示正常，旋转屏幕为竖屏时显示异常

竖屏情况下高不能适配屏幕高度，怎样才能使竖屏显示正常呢？

xiong.zhang · June 20, 2024, 6:23am

wm size是UI的分辨率，要想改变HDMI的分辨率需要在Droid Settings->Display->Screen resolution->Display Mode中选择

gaohongjun · June 20, 2024, 6:54am

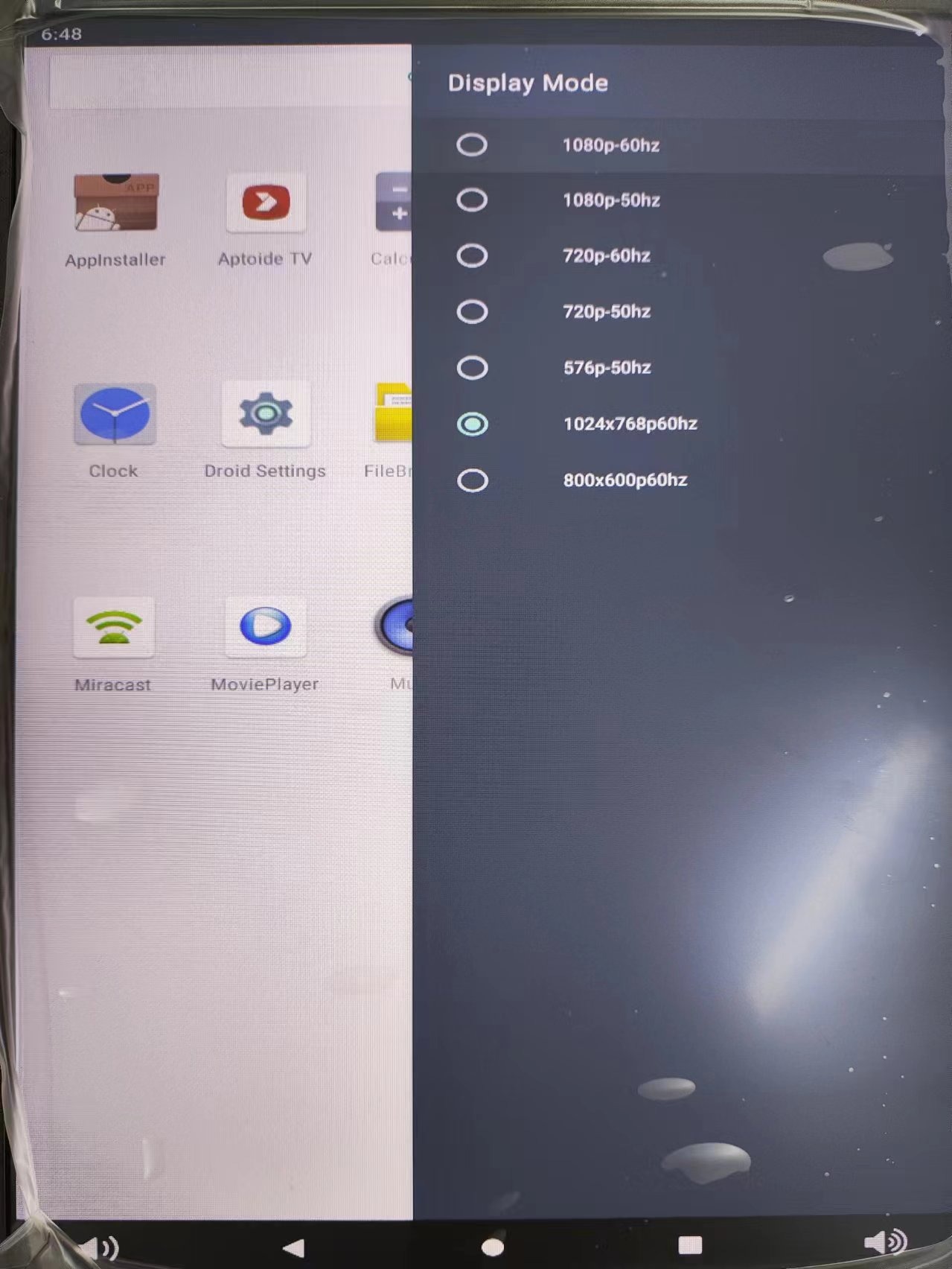

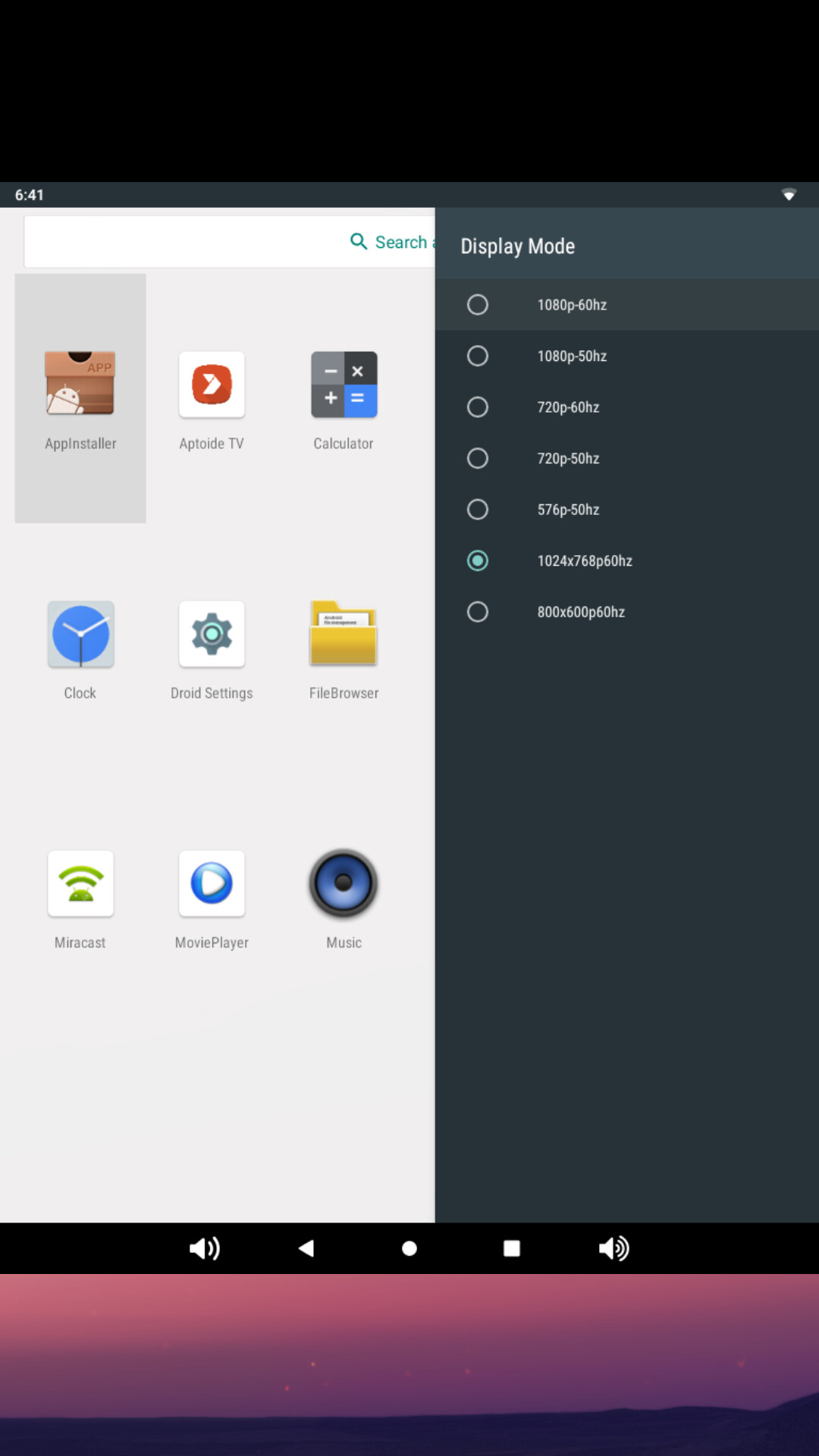

Display Mode中设置的也是1024x768，如下图：

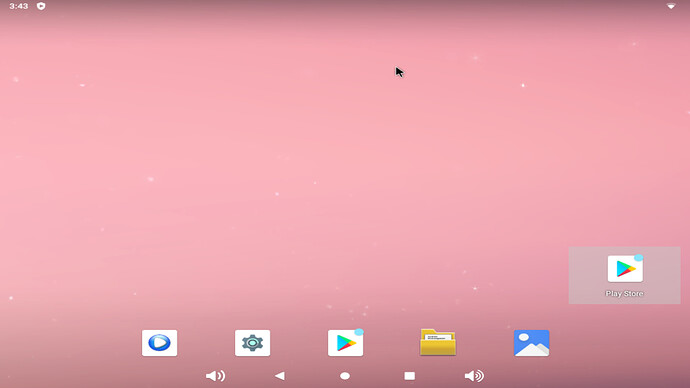

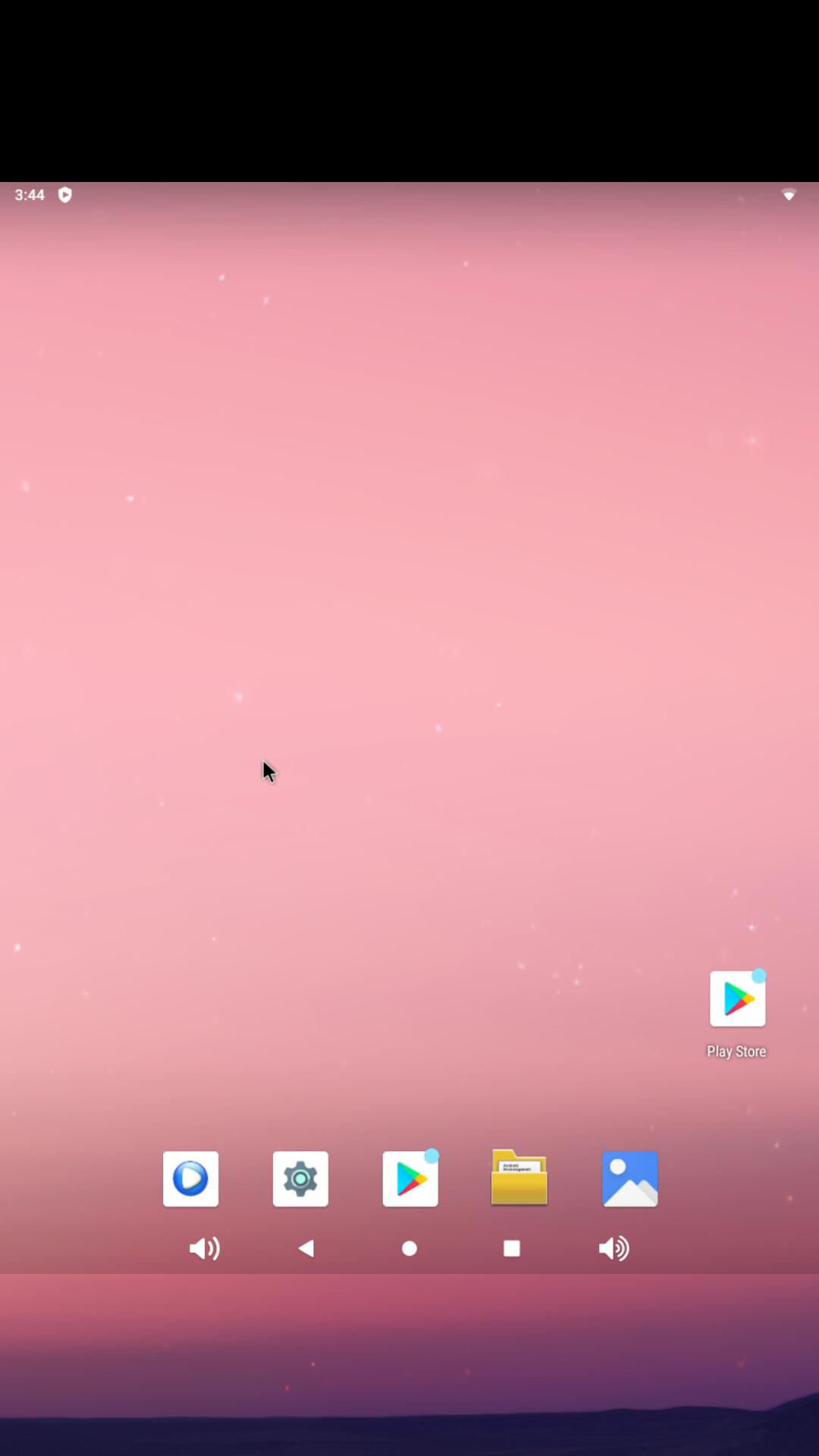

如果我不通过wm size设置分辨率，只在Display Mode中设置的话，屏幕上的图标显示是变形的（正常情况下图标是正方形，现在是矩形），如下图所示：

xiong.zhang · June 20, 2024, 7:02am

你试下最新的固件，这个分辨率的显示器我这里没有

gaohongjun · June 21, 2024, 12:53am

我重新烧录了v231122这个版本的固件，上面描述的问题依然存在。

xiong.zhang · June 21, 2024, 1:43am

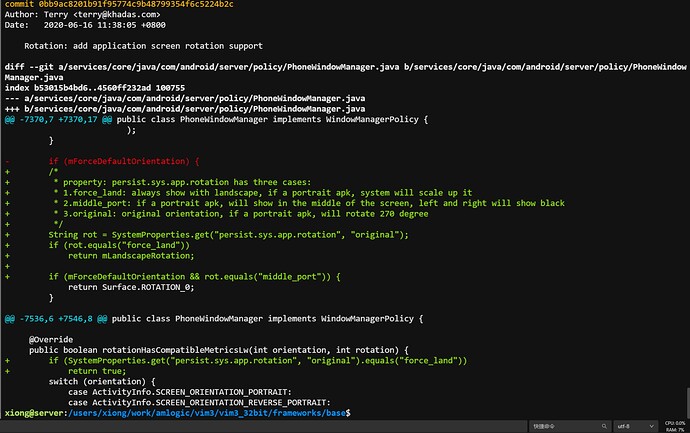

我们为了兼容MIPI和HDMI同显，将不是默认分辨率旋转后居中显示，Amlogic平台都是这样的

xiong.zhang · June 21, 2024, 1:44am

我尝试将默认的wm size修改成1024x768的试试

gaohongjun · June 21, 2024, 2:16am

好的，辛苦了，有结果了麻烦通知一下，谢谢。

xiong.zhang · June 21, 2024, 3:18am

修改如下

xiong@server:/users/xiong/work/amlogic/vim3/vim3_32bit/hardware/amlogic/hwcomposer$ git diff
diff --git a/common/hwc/HwcConfig.cpp b/common/hwc/HwcConfig.cpp
index c7f5b4b..694a993 100644
--- a/common/hwc/HwcConfig.cpp
+++ b/common/hwc/HwcConfig.cpp
@@ -14,8 +14,8 @@
 #include <misc.h>

 //hdmi only
-#define HWC_PRIMARY_FRAMEBUFFER_WIDTH       1920
-#define HWC_PRIMARY_FRAMEBUFFER_HEIGHT      1080
+#define HWC_PRIMARY_FRAMEBUFFER_WIDTH       1024
+#define HWC_PRIMARY_FRAMEBUFFER_HEIGHT      768
 #define HWC_PRIMARY_CONNECTOR_TYPE          "hdmi"
 #define HWC_DISPLAY_NUM                     1

xiong@server:/users/xiong/work/amlogic/vim3/vim3_32bit/device/khadas$ git diff
diff --git a/kvim3/kvim3.mk b/kvim3/kvim3.mk
index affe79f..23ef8d0 100755
--- a/kvim3/kvim3.mk
+++ b/kvim3/kvim3.mk
@@ -79,6 +79,8 @@ PRODUCT_PROPERTY_OVERRIDES += \
        persist.sys.logoled.brightness=1
 PRODUCT_PROPERTY_OVERRIDES += \
        persist.sys.logo.led.trigger=1
+PRODUCT_PROPERTY_OVERRIDES += \
+    persist.sys.rotation=3

 #wifi hotpot
 PRODUCT_PROPERTY_OVERRIDES += \
@@ -433,7 +435,7 @@ BOARD_USES_USB_PM := true

 include device/khadas/common/software.mk
 PRODUCT_PROPERTY_OVERRIDES += \
-    ro.sf.lcd_density=280
+    ro.sf.lcd_density=160

gaohongjun · June 21, 2024, 5:26am

按照这样修改，重新编译固件后问题解决了，谢谢。
