VIM3 ISP sensor mode settings

[Anthony_McGivern]

I am running a Khadas VIM3 with an Ubuntu 18.04 image built using Fenix. I am trying to bring up the IMX415 with our own sensor driver including some custom sensor modes as well as our own sensor initialization sequences.

The only point I am unsure about is the .bps value in each of the sensor modes, as I am not sure how this should be calculated. For example, one of the modes I have is 1920x1080@30fps using RAW12 in linear mode. What formula would I use to then calculate the bps value for this mode. Would I also require any additional parameters such as the sensor MIPI clock speed?

Thanks.

[Electr1]

Hi @Anthony_McGivern

@Anthony_McGivern

The only point I am unsure about is the .bps value in each of the sensor modes, as I am not sure how this should be calculated.

Have you checked the sensor datasheet for this information ?

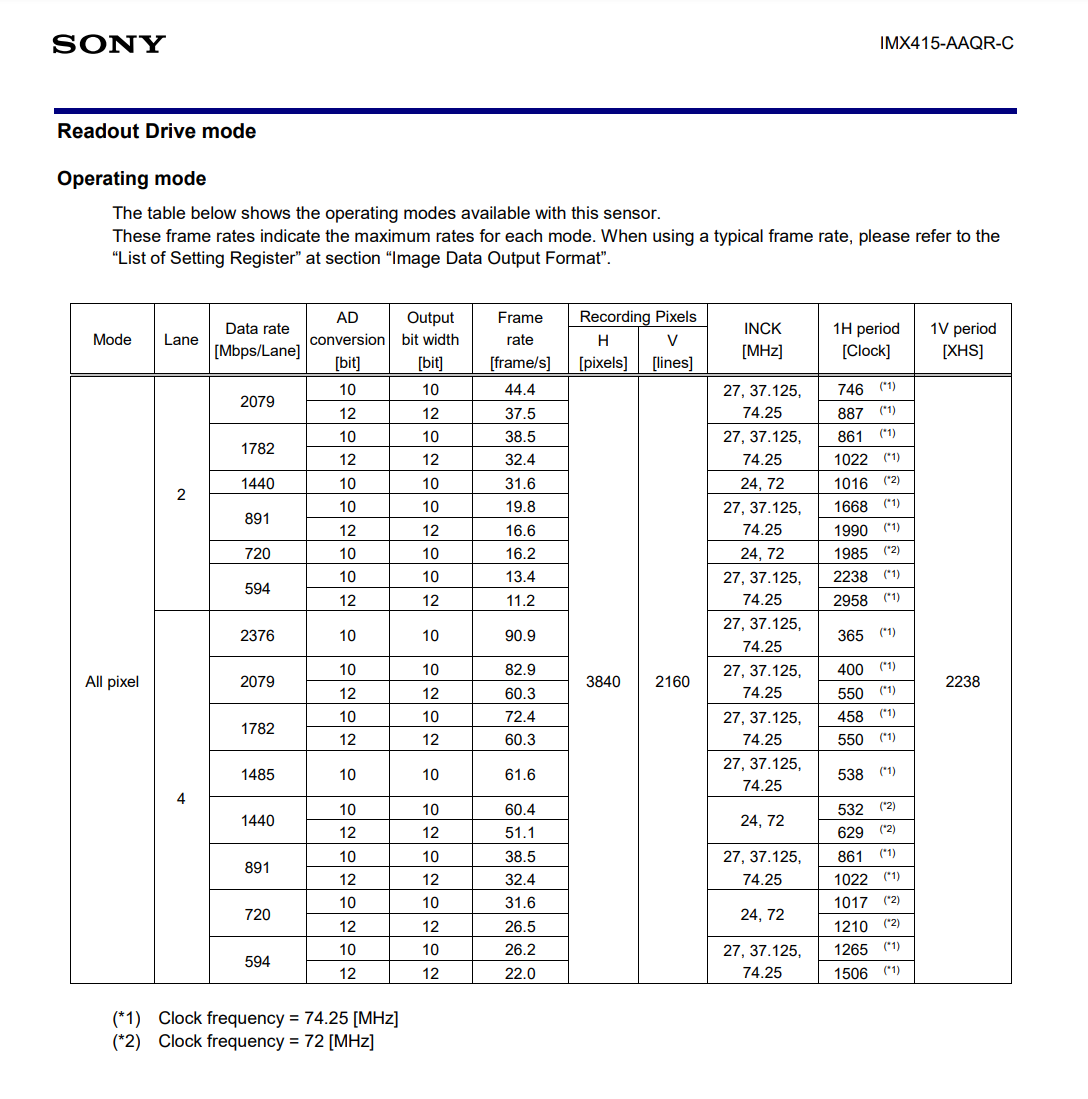

Framerate to bps values have been mentioned here in the table.

sony-imx415-datasheet.pdf

you can also check this driver implementation, linux/drivers/media/i2c/imx415.c at khadas-edges-5.10.y · khadas/linux · GitHub

[Anthony_McGivern]

Ah I see. That is perfect thanks, I had not seen this before in the datasheet.
