Vim1 Board keeps restarting after burning images

VIM1
1

I use Android system,burn Khadas official VIM1_Pie_V211022 images on vim1 board.
I use Usb burning tools on windows,select Erase flash and Erase bootloader option

Power off and restart after burning successful,
微信图片_20220816161019

the board always restart.,after display logo

微信图片_20220815175500
微信图片_202208151755001920×1440 50.7 KB

微信图片_20220815175455
微信图片_202208151754551920×1440 37.2 KB

serial port log:
https://pastebin.com/8seq78UC

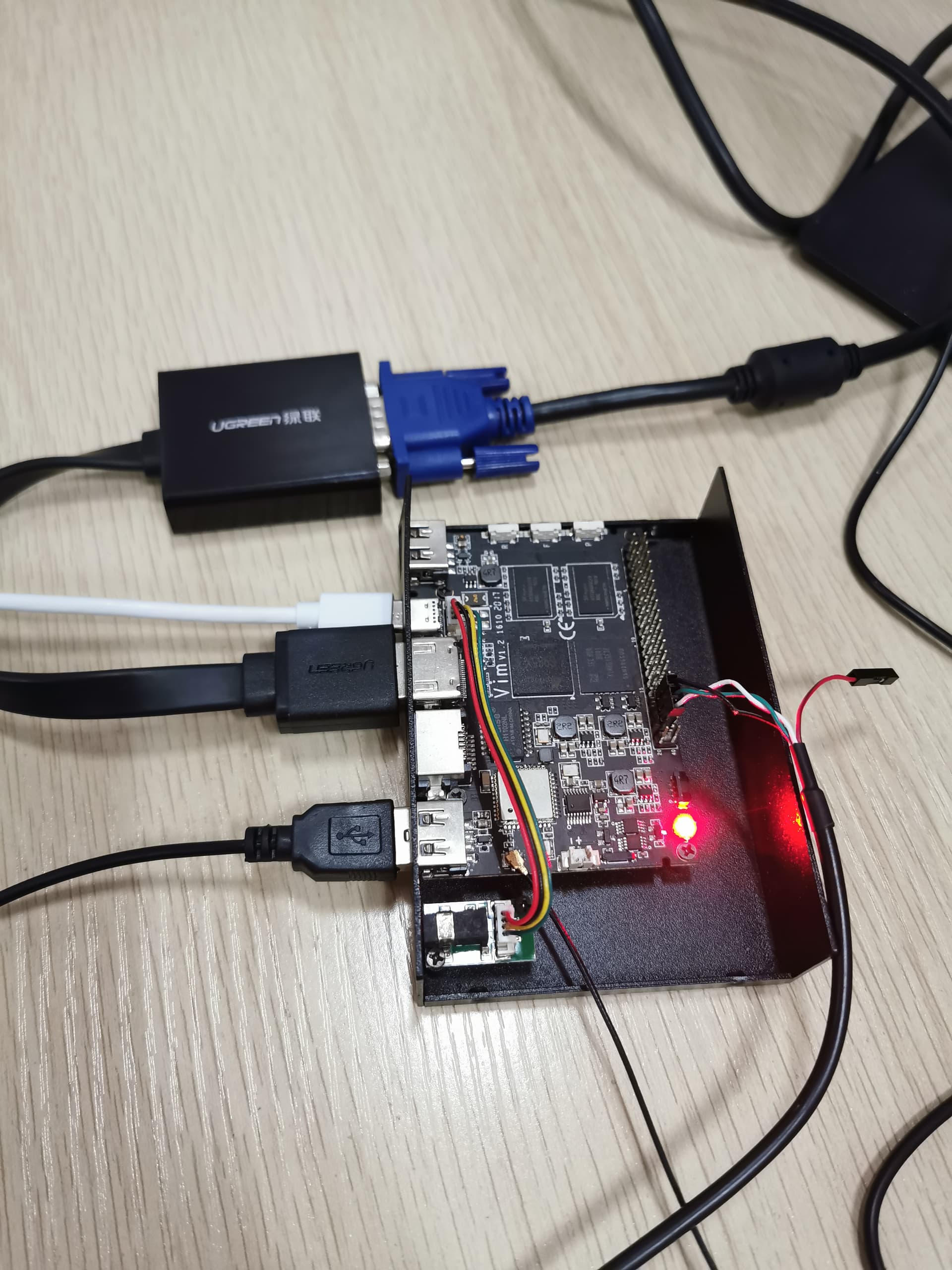

I use Vim1 basic board

微信图片_20220816164018
微信图片_202208161640181920×2560 460 KB

Look forward to your help! Thanks !

2

@emily Replace the power supply to see if it still appears? Or repeatedly power off and restart to see if it still appears? Is it 100%?

3

This problem appears every time , yesterday,I did not select Erase flash and Erase bootloader option, the board did not restart,but it keeps showing the logo

微信图片_20220815175455
微信图片_202208151754551920×1440 37.2 KB

Is it that I shouldn’t choose to erase the bootloader and erase flash when I burn the images?

4

Is there a problem with using the Type-c data cable, must a special power adapter be used to power the board?

微信图片_20220816180539
微信图片_202208161805391920×2560 375 KB

微信图片_20220816180527
微信图片_202208161805271920×2560 259 KB

5

@emily Take off the wifi antenna and have a look.

6

This problem still appears when I take off the wifi anternna.
but when I unplug HDMI the board don’t restart.

7

Thank you very much for your help！
Replaced the power adapter and the problem is solved
