USB-C PD Negotiation Wrong - 12V/0A in message

VIM4
1

Hi There,

I have been looking at issues the VIM4 has with some PSU’s and not others and the case I can see is the USB-C PD negotiate correctly.

I can see all the voltage and current negotions and in the end, VIM4 requests 12V / 0A .
yes ZERO Amps!

Some PSU’s use this value and set the current limit too low! Others PSU’s dont care.

Is there a way to get VIM4 to request 12V/3A ?

Richard

2

Hi @there,

Which PSU and how can we reproduce this issue?

Regards,
Nick

3

It happens on all PD psu’s … if you monitor the PD negotiation, VIM4 gets a list of all supported Voltage/Current from PSU and then selects 12V/0A. PSU’s that have the Texas Instruments (TI) USB-PD controllers default to 2.5A in that case - which is not enough for a fully loaded A311D2 (USB hard drives, graphics high res and NPU running)
I have another generic PD PSU that ignores the 0A and always delivers maximum current.

The end result is that VIM4 is telling the PSU to supply 12V/0A - it should be 12V/3A

4

Additional:
Newer uboot bootloaders have the ‘tcpm’ command to help debug PD issues. Are there plans to update uboot from the 2019.01 version? (6 years old!)

5

Hi @RichardPar,

This is the log for our official pd adaptor, could you provide the log from your side?

fusb302_init: Device ID: 0x91
CC connected in 0 as UFP
charge ic max_vol = 12000mv max_cur = 6000ma
chip->pos_power = 3, chip->pd_output_vol=12000  chip->pd_output_cur=2500
fusb302 detect chip.port_num = 0

There is no plan at this moment.

Regards,
Nick

6
fusb302_init: Device ID: 0x91
CC connected in 0 as UFP
charge ic max_vol = 12000mv max_cur = 6000ma
chip->pos_power = 3, chip->pd_output_vol=12000  chip->pd_output_cur=3000
fusb302 detect chip.port_num = 0

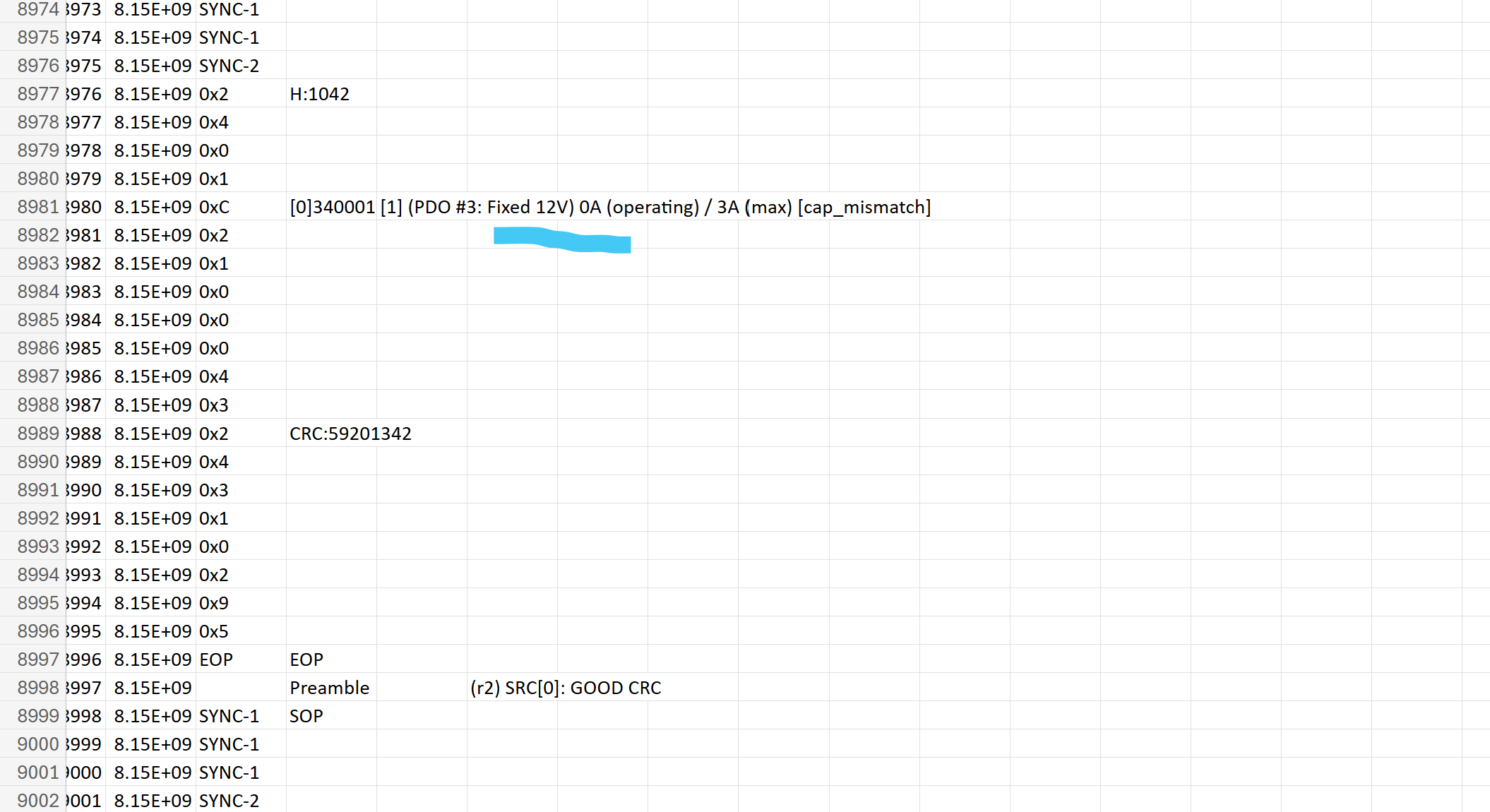

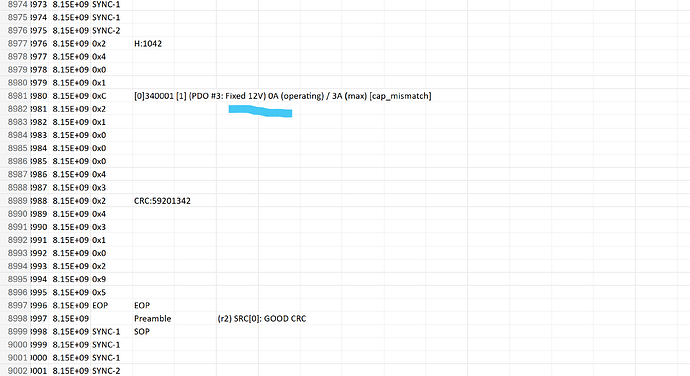

This is a log from the PD negotiation..

image2110×1150 306 KB

It showing that 12V/0A is requested - and the analyser is showing a mismatch as 0A is not valid.

7

Hello @RichardPar

Could you share us how you get such message?

8

I use a DSLogic analyser DSLogic Plus - DreamSourceLab connected to the PD lines on VIM4. The software has a built in PD decoder.

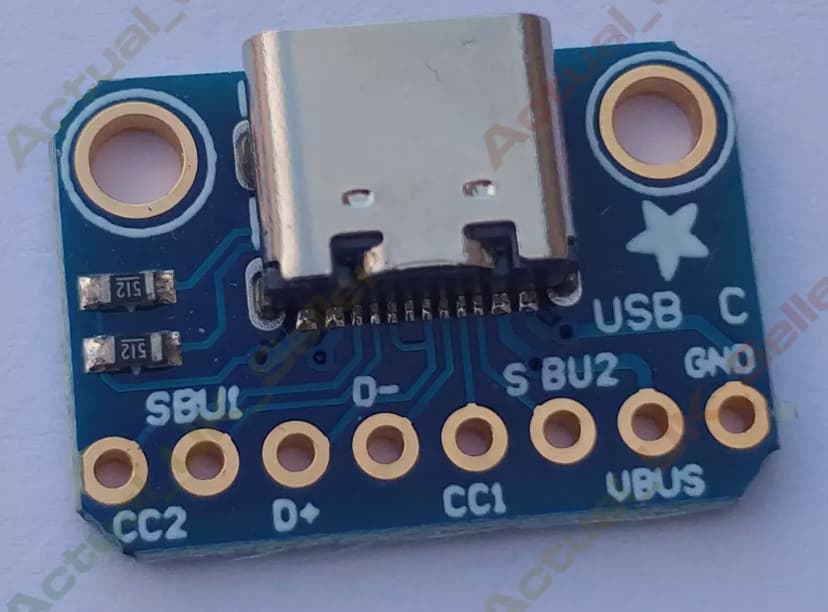

I connected 2 of these to make an adapter (removed the resistors from the board) and connected the analyser to CC1 and CC2

Richard

image828×612 42.3 KB

I can share the logs I have (for about 10 different PD power supplies)

9

@numbqq

There is one bug in the uboot,
/drivers/power/mfd/fusb302.c (from patch)

The & 0x3ff on voltage is messing up the data. I removed the & 0x3ff from VOLTAGE and it works much better.

function set_mesg()

+			case 0:
+				/* Fixed Supply */
+				chip->send_load[0] |= ((CAP_FPDO_VOLTAGE(chip->rec_load[chip->pos_power - 1]) << 10) & 0x3ff);
+				chip->send_load[0] |= (CAP_FPDO_CURRENT(chip->rec_load[chip->pos_power - 1]) & 0x3ff);
+				break;
+			case 1:
+				/* Battery */
+				chip->send_load[0] |= ((CAP_VPDO_VOLTAGE(chip->rec_load[chip->pos_power - 1]) << 10) & 0x3ff);
+				chip->send_load[0] |= (CAP_VPDO_CURRENT(chip->rec_load[chip->pos_power - 1]) & 0x3ff);
+				break;
+			default:

I changed to


Richard

10

Hello @RichardPar

Does it work well after this change? We don’t have chance to check at this moment.

11

It does work after the change. There are many other quirks, but this works. I can get to full 2.5A load with the change. Preiously I could only get 0.5A Max

1 Like
12

Hello @RichardPar

Could you send a PR to us? :wink:

13

I will make a patch this weekend.. no problem!

Edit: Done

2 Likes
14

Hello. Did this patch ever go into production? I’ve tried multiple power supplies here that nominally offer 12V/3A and none work. I can reliably power the VIM4 from a USBC port on my desktop computer’s hub (an OWC Thunderbolt Dock) or from a a battery pack, but my collection of 90+W Apple PSUs don’t work. Thanks

Welcome to Fenix 1.7.5 Ubuntu 24.04.4 LTS Linux 5.15.137
15

Nope, it didn’t - its been much ignored.

16

Frustrating. Thanks for doing the work anyway. Maybe I should roll up my sleeves and compile it here.

EDIT: nevermind, I’ve only got ARM machines in my home lab and it seems the VIM4 can’t build itself. Not cool.

Your build host architecture is not supported,please use a 'x86-x64' build host.

17

Hello Team, could you possibly put Richard’s patch into production? Thanks.

18

I use the Docker environment to build on a server… it was pretty straight forward.

1 Like
19

TIL Docker supports cross-compilation of stuff using Rosetta and that I should read documentation. I’d always assumed I was locked into ARM! Thanks.

EDIT: Helpful pointers to compile Ubuntu on Apple Silicon:

  1. Ensure latest Docker Desktop installed
  2. In Settings, General, ensure Apple Virtualization framework enabled
  3. Enable “Use Rosetta for x86_64/amd64 emulation on Apple Silicon
  4. In Settings, Resources, bump the RAM as high as you can bear - I was getting “aarch64-elf-gcc: internal compiler error: Killed (program cc1)” errors by the bucketload with 8GB - these have gone with 32GB
  5. Remember to include the --platform linux/amd64 when invoking Docker
  6. Edit the `config/functions/common-functions` file to use rosetta instead of `qemu-arm` or `qemu-arm64`

I’ll finish (or delete) these instructions when the build completes or goes down in flames. That might take a few hours.

A few hours later (imagine a cod French accent): well case sensitivity sucks. It seems there’s a file called ipt_ECN.h and another that’s supposed to be called ipt_ecn.h in the same directory. Since my Docker was installed on an APFS volume with standard options the second file to be downloaded by git overwrites the first and pain and suffering ensue.

I’ll create a case-sensitive fake volume now and start again.

20

I used this as a guide :smiley:
