Problems to upgrade Edge-V

cassiovolcan · July 8, 2019, 2:32pm

Hi,

I have an Edge-V which is completed bricked after testing on 4k resolution with the Edge_Nougat_V190614 OS.

It is not booting anymore and I am not able to flash the mmc, neither boot from SD Card or not even enter in MASK Mode to upgrade Using a USB-C Cable (I installed the USB driver in 3 different windows versions vista, 7 and 10).

I have followed all of that steps:

I used varied USB-C cables with no success. And there is no hardware issue.

It’s really important to mention that I can not find the any input when I plug in the usb the board (by dmesg). I mean, the usb is not up.

I have no serial access.

Do you have any idea to help me?

Gouwa · July 8, 2019, 2:59pm

Hi @cassiovolcan

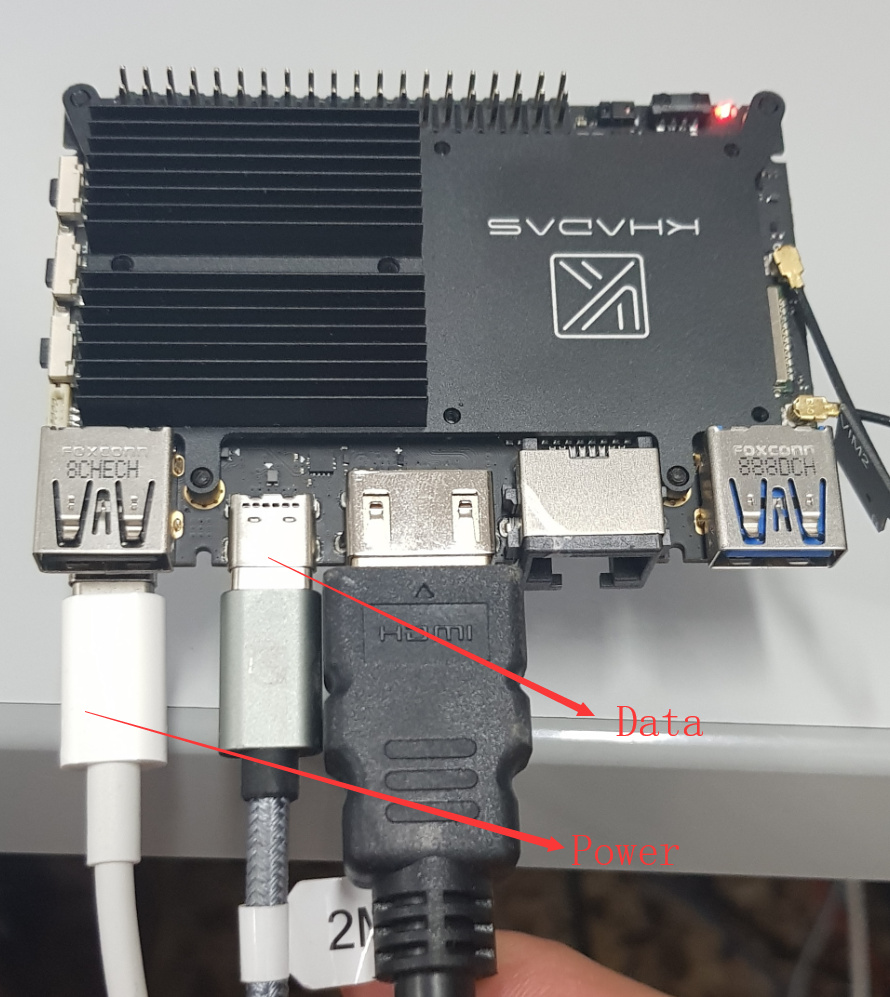

Which USB-C port you connected to PC? Be note only the data one should be connected to PC:

Thanks!

cassiovolcan · July 8, 2019, 3:40pm

Hi,

I’ve tried it already. As I mentioned before there is no message in the host (by dmesg) once the board is plugged in (connecting either both cables or just data one).

Gouwa · July 8, 2019, 5:07pm

Try again:

Only with the Data USB-C cable to your USB 3.0 PC
Be note don’t connect the Power USB-C

Thanks!

cassiovolcan · July 9, 2019, 7:05am

I tried it again. The USB driver is not up.

goenjoy · July 9, 2019, 8:32am

https://mega.nz/#!H7JCFYpL!iT_jo_6KZ6veYjRNCXoPLlBMDMvCyZ9Y6Iv_2kJNpgs
I just applied for the latest driver（DriverAssitant_v4.8) from Rockchip. You can try it.

cassiovolcan · July 9, 2019, 12:08pm

Hi,

I also tried this one you just sent. No success.

Actually I was able to upgrade before, and after it stops working (brick) I can’t.

I think the kernel is bricked so can’t put the usb driver up.

Any idea?

goenjoy · July 9, 2019, 12:25pm

Your board should be V11 version. As shown in the figure.

MRegister Mode(Maskrom Mode)

Connect to PC with USB-C port.
Use a tweezer to short-circuit the two pads of M register, then without releasing…
Short press the Reset key and release it to boot into Upgrade Mode (Maskrom Mode).

or

Use a tweezer to short-circuit the two pads of M register, then without releasing…
Connect to PC with USB-C port.

or

Long press the Function key without releasing it.
Connect to PC with USB-C port.

Note:

goenjoy · July 9, 2019, 12:31pm

goenjoy · July 9, 2019, 12:51pm

If not, it may be the problem of data line. It is suggested to change it better. Or better use the interface data line shown below.

cassiovolcan · July 9, 2019, 1:09pm

I also tried all of this. There is no rockusb device either or unknown device.

cassiovolcan · July 9, 2019, 1:10pm

I tried 3 different data cables and 3 different pcs.

cassiovolcan · July 9, 2019, 1:11pm

there is no such option after plugging it in.

goenjoy · July 9, 2019, 1:24pm

Maybe there’s something wrong with the board. Will the light turn on when the power is on directly?

cassiovolcan · July 15, 2019, 2:25pm

Yes.

It does not look like is a hardware issue.

goenjoy · July 16, 2019, 1:15am

Better send the board back to us for repair.
