Mind 2 + graphics problem

Technical Support
1

Hi, I’m having trouble pairing mind 2 and graphics modules.

I ordered Mind 2 a month ago, updated everything according to the instructions and have been using it. Then Graphics came to me and problems started. App keeps giving a message that it needs a reboot, I reboot and so on and so on. While this message is hanging, I can’t access the program interface at all.

The card is not detected in device manager

image1189×1039 108 KB

So, what’s wrong?

2

When I deattach Graphics module and restart App, interface is ready and all modules are updated

image1237×1858 234 KB

3

Here is one more message from app

image1597×1894 239 KB

4

Hello @sergey92shilin

Could you try the below steps?

  1. Try restarting the computer and check if the 4060Ti graphics card driver is recognized in the Device Manager. If the driver is recognized, use MindAPP to install the driver.

  2. Power off Mind, unplug the power cables for both Graphics and Mind, remove Mind, then power on again and reconnect Mind. Check if the graphics card driver is recognized.

  3. With both Mind and Graphics connected, check if the LED light on the Graphics is solid (on). Also, verify if the USB interface is functional. (If the LED is a breathing light and the USB has no function, it indicates the handshake has failed.)

5

Hello, @numbqq !

  1. I don’t see graphics card in device manager after restarting.

    telegram-cloud-photo-size-2-5375446085897676837-w
    telegram-cloud-photo-size-2-5375446085897676837-w2560×1262 180 KB

  2. It doesn’t recognize :frowning: I have tried it too many times

  3. Graphics LED is breathing, but USB ports (and audio and volume buttons) work well

6

Hello @sergey92shilin

Our after-sales team will contact you, please check your private message.

7

Sorry Guys I am having the same issue. Has anyone found a working solution?

1 Like
8
  1. Connect the power supply to Graphics and ensure the front LED indicator is flashing.
  2. Ensure Mind is powered off, then connect Mind to Graphics.
  3. Power on the system, open Device Manager, and take screenshots of the Display adapters and Universal Serial Bus controllers sections.
    Then we’ll determine what the problem is based on the contents of the screenshot
9

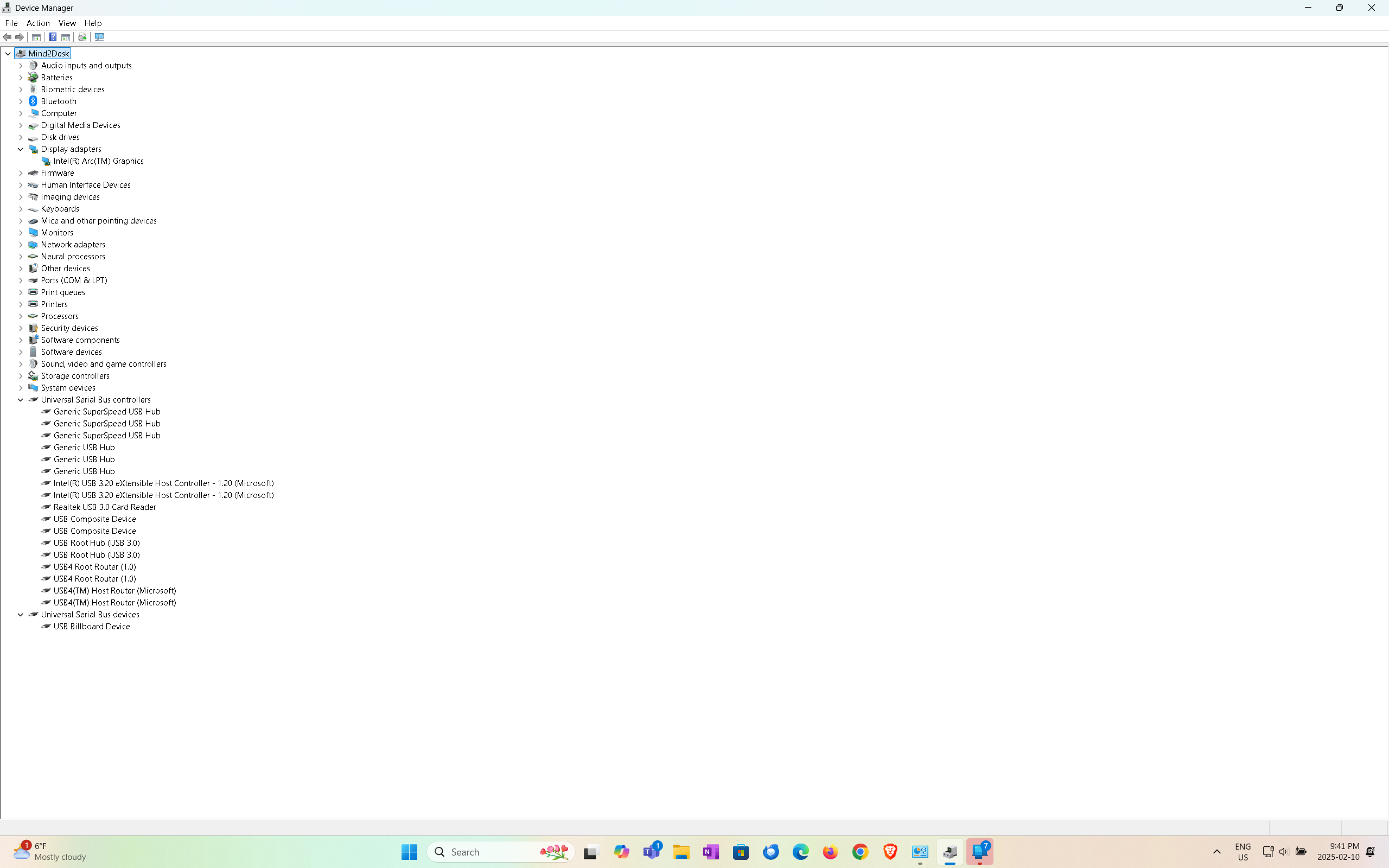

As requested…Powered up Graphics until light was flashing. Connected Mind V2 to Graphics and turned it on. Attached is the screencap of the Display Adapters and USB Controllers sections.

Screenshot 2025-02-10 214130
Screenshot 2025-02-10 2141302560×1600 222 KB

10

Hello? Anyone have a solution?

11

Hello @William_Lowry

Our after-sales team already send email to contact you days ago, have you receviced?

12

Hi.

I have not received anything since the request for where I purchased and my order number.

I did search my emails just in case it went to junk but don’t see anything.

will

13

Hello @William_Lowry

Our after-sales team has reached you out by email now, we will follow up there.

14

Might i also get some help for the same exact problem?

15

Have you tried this setup guide?

1 Like
16

Yes I’ve reviewed it several times unfortunately it barely goes over laptop compatability and how to install the patch without update. I ran the driver update first as it says and it told me I had now available video card. I’ve had it for awhile but have never used it and first time I fully figure out how to use it it does this. I just really hope I dont need to eat a 1000 dollar loss here.

Thanks for your response.

17

I forget to mention I’ve set it up on multiple pcs/laptops mostly all amd of varying specs. All work up to that point. The only thing im confused about in the process is how to install the patch and make the pc/laptops recognize the gpu aspect of the product.

18

Hi Sir,

We certainly don’t want you to walk away from a $1,000 investment without getting the experience you paid for. Could you confirm whether you’re connecting the laptop to the Graphics enclosure with a Thunderbolt cable? It would help a lot if you could describe, step-by-step, exactly how you’re trying to use it and what specific problem you’re running into.

1 Like
19

Thank you very much for the quick response. I’ll provide the following, details sorry for the lack of clarification.

I’ve connected via thunderbolt and I’ve received no error up until I try and install the graphics card drivers (furthest I’ve managed in the process). I’ve used all thunderbolt compatible devices and cables. Im trying to use it as an egpu attached to any device I can get it working on at this point and that should be all my available devices lol. Let me know if u want specs tho I’ve refrained so far because I wouldn’t know which one to give you in regards to each device.

Thanks again for the responses. Even if it doesn’t end up fixing I appreciate the quickness

20

Hi my friend,

Sorry for the late reply—I’ve been traveling on business. I’ve already passed your question on to our dedicated support team. To narrow things down, let me double-check how you’re using the unit.

You have several laptops—some with AMD CPUs and some with Intel CPUs—correct?
You connect the Khadas Graphics to the laptop with a Thunderbolt cable(Thunderbolt 3 or 4), download the RTX4060Ti driver from NVIDIA’s website, install it, but afterward the GPU still isn’t recognized or usable—is that right? At this moment, do any of the ports on the Khadas Graphics unit itself work (e.g., USB-C, DP, HDMI, Ethernet)?
