Pretty sure that is the same one I have used. Not at that location at the moment so I will check it out later and verify. I would try it and see if it works.
Terminated
root@Krescue:/# [ 289.068573] reboot: Restarting system
bl31 reboot reason: 0xd
bl31 reboot reason: 0x0
system cmd 1.
G12B:BL:6e7c85:2a3b91;FEAT:E0F83180:402000;POC:F;RCY:0;EMMC:0;READ:0;0.
bl2_stage_init 0x01
bl2_stage_init 0x81
hw id: 0x0000 - pwm id 0x01
bl2_stage_init 0xc1
bl2_stage_init 0x02
L0:00000000
L1:20000703
L2:00008067
L3:14000000
B2:00402000
B1:e0f83180
TE: 114171
BL2 Built : 15:22:05, Aug 28 2019. g12b g1bf2b53 - luan.yuan@droid15-sz
Board ID = 8
Set A53 clk to 24M
Set A73 clk to 24M
Set clk81 to 24M
A53 clk: 1200 MHz
A73 clk: 1200 MHz
CLK81: 166.6M
smccc: 000205d9
eMMC boot @ 0
sw8 s
DDR driver_vesion: LPDDR4_PHY_V_0_1_18 build time: Aug 28 2019 15:22:01
board id: 8
Load FIP HDR from eMMC, src: 0x00010200, des: 0xfffd0000, size: 0x00004000, part: 0
fw parse done
Load ddrfw from eMMC, src: 0x00060200, des: 0xfffd0000, size: 0x0000c000, part: 0
Load ddrfw from eMMC, src: 0x00038200, des: 0xfffd0000, size: 0x00004000, part: 0
PIEI prepare done
fastboot data load
00000000
emmc switch 1 ok
00000000
emmc switch 2 ok
fastboot data verify
verify result: 265
Cfg max: 4, cur: 1. Board id: 255. Force loop cfg
LPDDR4 probe
ddr clk to 1608MHz
Load ddrfw from eMMC, src: 0x0003c200, des: 0xfffd0000, size: 0x0000c000, part: 0
00000000
emmc switch 0 ok
dmc_version 0001
Check phy result
INFO : End of CA training
INFO : End of initialization
INFO : Training has run successfully!
Check phy result
INFO : End of initialization
INFO : End of read enable training
INFO : End of fine write leveling
INFO : End of Write leveling coarse delay
INFO : Training has run successfully!
Check phy result
INFO : End of initialization
INFO : End of read dq deskew training
INFO : End of MPR read delay center optimization
INFO : End of write delay center optimization
INFO : End of read delay center optimization
INFO : End of max read latency training
INFO : Training has run successfully!
1D training succeed
Load ddrfw from eMMC, src: 0x00048200, des: 0xfffd0000, size: 0x0000c000, part: 0
Check phy result
INFO : End of initialization
INFO : End of 2D read delay Voltage center optimization
INFO : End of 2D read delay Voltage center optimization
INFO : End of 2D write delay Voltage center optimization
INFO : End of 2D write delay Voltage center optimization
INFO : Training has run successfully!
channel==0
RxClkDly_Margin_A0==87 ps 9
TxDqDly_Margin_A0==106 ps 11
RxClkDly_Margin_A1==87 ps 9
TxDqDly_Margin_A1==97 ps 10
TrainedVREFDQ_A0==26
TrainedVREFDQ_A1==27
VrefDac_Margin_A0==27
DeviceVref_Margin_A0==26
VrefDac_Margin_A1==26
DeviceVref_Margin_A1==26
channel==1
RxClkDly_Margin_A0==87 ps 9
TxDqDly_Margin_A0==106 ps 11
RxClkDly_Margin_A1==97 ps 10
TxDqDly_Margin_A1==106 ps 11
TrainedVREFDQ_A0==25
TrainedVREFDQ_A1==25
VrefDac_Margin_A0==25
DeviceVref_Margin_A0==24
VrefDac_Margin_A1==27
DeviceVref_Margin_A1==25
dwc_ddrphy_apb_wr((0<<20)|(2<<16)|(0<<12)|(0xb0):0004
soc_vref_reg_value 0x 00000027 00000026 00000027 00000025 00000026 00000025 00000025 00000025 00000027 00000023 00000026 00000024 00000024 00000026 00000025 00000024 00000027 00000027 00000029 00000026 00000026 00000028 00000027 00000024 00000025 00000027 00000025 00000027 00000026 00000025 00000025 00000026 dram_vref_reg_value 0x 00000013
2D training succeed
aml_ddr_fw_vesion: LPDDR4_PHY_V_0_1_18 build time: Aug 28 2019 13:54:19
auto size-- 65535DDR cs0 size: 2048MB
DDR cs1 size: 2048MB
DMC_DDR_CTRL: 00e00024DDR size: 3928MB
cs0 DataBus test pass
cs1 DataBus test pass
cs0 AddrBus test pass
cs1 AddrBus test pass
100bdlr_step_size ps== 420
result report
boot times 0Enable ddr reg access
00000000
emmc switch 3 ok
Authentication key not yet programmed
get rpmb counter error 0x00000007
00000000
emmc switch 0 ok
Load FIP HDR from eMMC, src: 0x00010200, des: 0x01700000, size: 0x00004000, part: 0
Load BL3X from eMMC, src: 0x00078200, des: 0x01768000, size: 0x000d0000, part: 0
0.0;M3 CHK:0;cm4_sp_mode 0
MVN_1=0x00000000
MVN_2=0x00000000
[Image: g12b_v1.1.3390-6ac5299 2019-09-26 14:10:05 luan.yuan@droid15-sz]
OPS=0x10
ring efuse init
chipver efuse init
29 0b 10 00 01 0f 13 00 00 02 37 30 4e 42 4e 50
[0.902966 Inits done]
secure task start!
high task start!
low task start!
run into bl31
NOTICE: BL31: v1.3(release):4fc40b1
NOTICE: BL31: Built : 15:58:17, May 22 2019
NOTICE: BL31: G12A normal boot!
NOTICE: BL31: BL33 decompress pass
ERROR: Error initializing runtime service opteed_fast
U-Boot 2015.01 (Dec 17 2021 - 17:34:31)
DRAM: 3.8 GiB
Relocation Offset is: d6e42000
spi_post_bind(spifc): req_seq = 0
register usb cfg[0][1] = 00000000d7f39210
aml_i2c_init_port init regs for 0
MCU version: 0x00 0x02
MCU version is to low! Doesn’t support froce boot from SD card.
MMC: aml_priv->desc_buf = 0x00000000d3e32a70
aml_priv->desc_buf = 0x00000000d3e34db0
SDIO Port B: 0, SDIO Port C: 1
co-phase 0x3, tx-dly 0, clock 400000
co-phase 0x3, tx-dly 0, clock 400000
co-phase 0x3, tx-dly 0, clock 400000
emmc/sd response timeout, cmd8, status=0x3ff2800
emmc/sd response timeout, cmd55, status=0x3ff2800
co-phase 0x3, tx-dly 0, clock 400000
co-phase 0x1, tx-dly 0, clock 40000000
aml_sd_retry_refix[983]:delay = 0x0,gadjust =0x2000
[mmc_startup] mmc refix success
init_part() 282: PART_TYPE_DOS
[mmc_init] mmc init success
start dts,buffer=00000000d3e37620,dt_addr=00000000d3e37620
check_valid_dts: FDT_ERR_BADMAGIC
get_partition_from_dts() 91: ret -9
get_partition_from_dts() 94: ret -9
get_ptbl_from_dtb()-272: get partition table from dts faild
mmc_device_init()-1254: get partition table from dtb failed
get_ptbl_rsv()-494: magic faild MPT, Xmmc_device_init()-1281: dtb&rsv are not exist, no LPT source
get partition info failed !!
Using default environment
In: serial
Out: serial
Err: serial
reboot_mode=cold_boot
[store]To run cmd[emmc dtb_read 0x1000000 0x40000]
_verify_dtb_checksum()-3477: calc ded442c, store f0931f01
update_dtb_info()-3585: cpy 1 is not valid
_verify_dtb_checksum()-3477: calc 9d03fa88, store cf917
update_dtb_info()-3585: cpy 0 is not valid
dtb_read()-3694: total valid 0
emmc - EMMC sub system
Usage:
emmc dtb_read addr size
emmc dtb_write addr size
emmc erase dtb
emmc erase key
emmc fastboot_read addr size
emmc fastboot_write addr size
aml_i2c_init_port init regs for 0
fusb302_init: Device ID: 0x91
CC connected in 1 as UFP
fusb302 detect chip.port_num = 0
[KM]Error:f[keymanage_dts_parse]L307:not a fdt at 0x0000000001000000
vpu: error: vpu: check dts: FDT_ERR_BADMAGIC, load default parameters
vpu: clk_level = 7
vpu: vpu_power_on
vpu: set clk: 666667000Hz, readback: 666666667Hz(0x100)
vpu: vpu_module_init_config
vpp: vpp_init
vpp: vpp osd2 matrix rgb2yuv…
cvbs: cpuid:0x29
LCD_RESET PIN: 0
lcd: error: check dts: FDT_ERR_BADMAGIC, load default lcd parameters
lcd: detect mode: tablet, key_valid: 0
lcd: load config from bsp
lcd: use panel_type=lcd_0
lcd: bl: name: lcd_0, method: 1
lcd: bl: aml_bl_power_ctrl: 0
Net: [KM]Error:f[keymanage_dts_get_key_device]L100:/unify not parsed yet!
[KM]Error:f[_get_km_ops_by_name]L248:key eth_exphy_para not know device 4
[KM]Error:f[key_unify_read]L312:key[eth_exphy_para] no cfg in dts
dwmac.ff3f0000 Waiting for PHY auto negotiation to complete… done
The Best Window is index 40
[KM]Error:f[keymanage_dts_get_key_device]L100:/unify not parsed yet!
[KM]Error:f[_get_km_ops_by_name]L248:key eth_exphy_para not know device 4
[KM]Error:f[key_unify_write]L279:key[eth_exphy_para] no cfg in dts
libfdt fdt_check_header(): FDT_ERR_BADMAGIC
No FDT memory address configured. Please configure
the FDT address via "fdt addr " command.
Aborting!
dwmac.ff3f0000[KM]Error:f[keymanage_dts_parse]L307:not a fdt at 0x0000000001000000
upgrade_step=0
reboot_mode:::: cold_boot
[KM]Error:f[keymanage_dts_parse]L307:not a fdt at 0x0000000001000000
edid preferred_mode is [0]
hdr mode is 0
dv mode is ver:0 len: 0
hdr10+ mode is 0

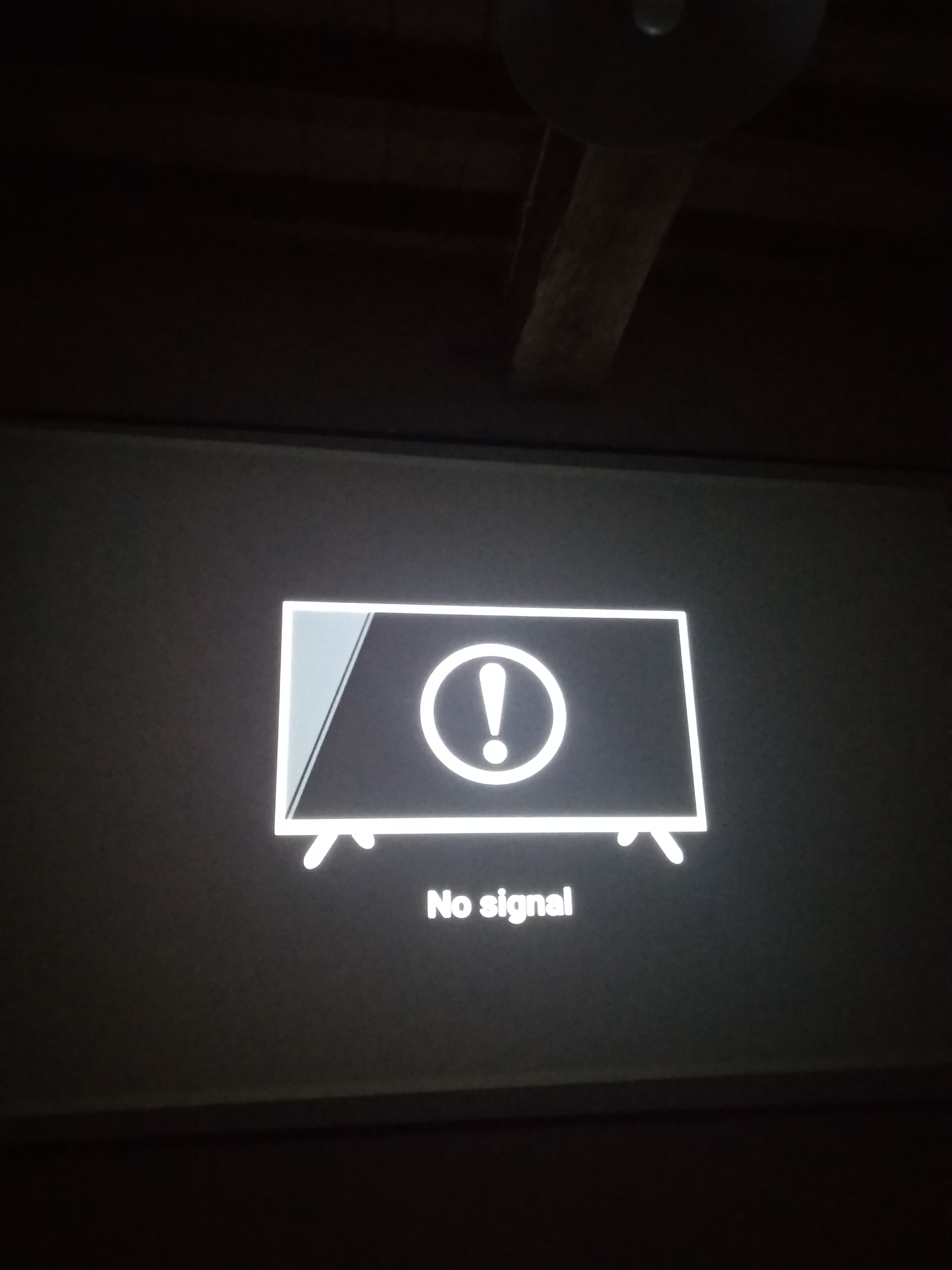

HDMI cable is NOT connected
hpd_state=0
[OSD]check dts: FDT_ERR_BADMAGIC, load default fb_addr parameters
[OSD]set initrd_high: 0x3d800000
[OSD]fb_addr for logo: 0x3d800000
[OSD]check dts: FDT_ERR_BADMAGIC, load default fb_addr parameters
[OSD]fb_addr for logo: 0x3d800000
[OSD]VPP_OFIFO_SIZE:0xfff01fff
[CANVAS]canvas init
[CANVAS]addr=0x3d800000 width=5760, height=2160
card out
** Bad device mmc 0 **
1080138 bytes read in 45 ms (22.9 MiB/s)
[OSD]osd_hw.free_dst_data: 0,767,0,1023
[OSD]osd1_update_disp_freescale_enable
cvbs: outputmode[panel] is invalid
hdmitx: outputmode[panel] is invalid
vpp: vpp_matrix_update: 0
vpp: g12a/b post2(bit12) matrix: YUV limit → RGB …
lcd: enable: lcd_0, mipi, 768x1024@60.0Hz
lcd: tablet driver init(ver 20180718): mipi
lcd: lcd_pll_wait_lock: pll_lock=1, wait_loop=1
vpp: vpp_init_lcd_gamma_table
lcd: pixel_clk = 64.843MHz, bit_rate = 518.744MHz, lanebyteclk = 64.843MHz
lcd: Waiting STOP STATE LANE
lcd: dsi init on
lcd: bl: set level: 100, last level: 0
lcd: bl: aml_bl_power_ctrl: 1
lcd: clear mute
vpp: Rx hdr_info.hdr_sup_eotf_smpte_st_2084 = 0
[KM]Error:f[keymanage_dts_parse]L307:not a fdt at 0x0000000001000000
gpio: pin GPIOAO_7 (gpio 7) value is 1
saradc: 0x289, hw_ver: 0x32 (VIM3.V12)
Product checking: pass! Hardware version: VIM3.V12
normal power on
boot wol: disable
libfdt fdt_check_header(): FDT_ERR_BADMAGIC
port mode is usb3.0
No FDT memory address configured. Please configure
the FDT address via "fdt addr " command.
Aborting!
No FDT memory address configured. Please configure
the FDT address via "fdt addr " command.
Aborting!
Hit Enter or space or Ctrl+C key to stop autoboot – : 0
pll tsensor avg: 0x2126, u_efuse: 0x800b
temp1: 47
ddr tsensor avg: 0x2154, u_efuse: 0xb
temp2: 49
device cool done
cfgload: start …
cfgload: reading /boot.ini from mmc 0:1 …
card out
** Bad device mmc 0 **
cfgload: no /boot.ini or empty file on mmc 0:1
cfgload: reading /boot/boot.ini from mmc 0:1 …
card out
** Bad device mmc 0 **
cfgload: no /boot/boot.ini or empty file on mmc 0:1
cfgload: reading /boot.ini from mmc 1:1 …
reading /boot.ini
10134 bytes read in 2 ms (4.8 MiB/s)
cfgload: applying boot.ini…
[#] Script a:d3e548b0 l:10114 c:0 s:0 - run
Starting boot.ini…
saradc: 0x289, hw_ver: 0x32 (VIM3.V12)
uboot type: vendor
Scanning mmc 0:1…
card out
** Bad device mmc 0 **
Scanning mmc 0:5…
card out
** Bad device mmc 0 **
Scanning mmc 1:1…
reading uInitrd
10723540 bytes read in 297 ms (34.4 MiB/s)
reading zImage
29248000 bytes read in 805 ms (34.6 MiB/s)
reading dtb.img
90207 bytes read in 5 ms (17.2 MiB/s)
reading /boot/env.txt
** Unable to read file /boot/env.txt **
reading env.txt
4561 bytes read in 2 ms (2.2 MiB/s)
Import env.txt
Set default mac address to ethaddr: 00:15:18:01:81:31!
Booting legacy kernel…
port mode is usb3.0
Apply dtbo uart3
reading /dtb/overlays/kvim3/uart3.dtbo
225 bytes read in 5 ms (43.9 KiB/s)
Apply dtbo pwm_f
reading /dtb/overlays/kvim3/pwm_f.dtbo
345 bytes read in 5 ms (67.4 KiB/s)
Apply dtbo i2c3
reading /dtb/overlays/kvim3/i2c3.dtbo
223 bytes read in 4 ms (53.7 KiB/s)
Apply dtbo i2s
reading /dtb/overlays/kvim3/i2s.dtbo
3330 bytes read in 5 ms (650.4 KiB/s)
Apply dtbo os08a10
reading /dtb/overlays/kvim3/os08a10.dtbo
1072 bytes read in 5 ms (209 KiB/s)
Apply dtbo watchdog
reading /dtb/overlays/kvim3/watchdog.dtbo
222 bytes read in 5 ms (43 KiB/s)
Remove eMMC vendor partitions…
HDMI: Autodetect: 1080p60hz
Loading init Ramdisk from Legacy Image at 13000000 …
Image Name: uInitrd
Image Type: AArch64 Linux RAMDisk Image (uncompressed)
Data Size: 10723476 Bytes = 10.2 MiB
Load Address: 00000000
Entry Point: 00000000
Verifying Checksum … OK
load dtb from 0x1000000 …
Flattened Device Tree blob at 01000000
Booting using the fdt blob at 0x1000000
reserving fdt memory region: addr=1000000 size=17000
Loading Ramdisk to 3cdc5000, end 3d7ff094 … OK
Loading Device Tree to 000000001ffe6000, end 000000001fffffff … OK
Starting kernel …
uboot time: 7506550 us
[ 0.366874@2] codec_mm_module_init
[ 0.373546@2] clkmsr ffd18004.meson_clk_msr: failed to get msr ring reg0
[ 0.556037@2] dmi: Firmware registration failed.
[ 0.559827@2] lcd: error: failed to get null
[ 0.559847@2] lcd: error: Out of clock range, reset to default setting
[ 0.559941@2] lcd: error: lcd_debug_info_if is null
[ 0.764643@2] mtdoops: mtd device (mtddev=name/number) must be supplied
[ 0.785638@2] meson_cpufreq_init:don’t find the node <dynamic_gp1_clk>
[ 0.787426@2] meson_cpufreq_init:don’t find the node <dynamic_gp1_clk>
[ 0.789272@2] ff803000.serial: clock gate not found
[ 0.843898@2] meson-remote ff808040.rc: don’t find the node <led_blink>
[ 0.845001@2] meson-remote ff808040.rc: don’t find the node <led_blink_frq>
[ 0.852572@3] efuse efuse: open efuse clk gate error!!
[ 0.885271@3] meson-fb meson-fb: create ion_client ffffffc09a7736c0, handle=ffffffc09a1e0180
[ 0.885275@3] meson-fb meson-fb: ion memory(0): created fb at 0x00000000e5800000, size 75 MiB
[ 6.042470@1] di_get_vpu_clkb: get clk vpu error.
[ 6.043725@1] get fclk_div5 err
[ 6.044681@1] vdin_drv_probe: vdin cannot get msr clk !!!
[ 6.050527@1] get fclk_div5 err
[ 6.053181@1] vdin_drv_probe: vdin cannot get msr clk !!!
[ 6.060965@2] amlvideo2 probe called
[ 6.062199@2] amlvideo2 probe called
[ 6.065890@2] Reserved memory: failed to init DMA memory pool at 0x00000000e3000000, size 0 MiB
[ 6.077378@2] meson-mmc: >>>>>>>>hostbase ffffff80088f6000, dmode
[ 6.135536@0] meson-mmc: >>>>>>>>hostbase ffffff8008a82000, dmode
[ 6.175772@0] meson-mmc: Tuning transfer error: nmatch=0 tuning_err:0xffffffac
[ 6.182394@1] meson-mmc: >>>>>>>>hostbase ffffff8008b0c000, dmode
[ 6.184063@0] meson-mmc: Tuning transfer error: nmatch=0 tuning_err:0xffffffac
[ 6.221697@0] cectx ff80023c.aocec: cec driver date:2019/6/13:early suspend not report pw status
[ 6.221697@0]
[ 6.226938@1] cectx ff80023c.aocec: compatible:amlogic, aocec-g12a
[ 6.232667@1] cectx ff80023c.aocec: cecb_ver:0x1
[ 6.237304@1] cectx ff80023c.aocec: line_reg:0x1
[ 6.241864@2] cectx ff80023c.aocec: line_bit:0x3
[ 6.246426@2] cectx ff80023c.aocec: ee_to_ao:0x1
[ 6.251203@2] cectx ff80023c.aocec: not find ‘port_num’
[ 6.256214@2] cectx ff80023c.aocec: using cec:1
[ 6.260738@2] cectx ff80023c.aocec: no hdmirx regs
[ 6.265485@2] cectx ff80023c.aocec: no hhi regs
[ 6.269993@2] cectx ff80023c.aocec: not find ‘output’
[ 6.276472@2] cectx ff80023c.aocec: irq cnt:2
[ 6.279466@2] cectx ff80023c.aocec: wakeup_reason:0x0
[ 6.284432@2] cectx ff80023c.aocec: cev val1: 0x0;val2: 0x0
[ 6.289930@2] cectx ff80023c.aocec: aml_cec_probe success end
[ 6.742326@2] defendkey ff630218.defendkey: Reserved memory is not enough!
[ 6.956332@2] asoc-aml-card auge_sound: control 2:0:0:I2SIn CLK:0 is already present
[ 6.958426@2] snd_tdm ff642000.audiobus:tdmb: ASoC: Failed to add I2SIn CLK: -16
[ 6.965804@2] aml_dai_tdm_probe, failed add snd tdm controls
[ 6.971429@2] asoc-aml-card auge_sound: control 2:0:0:I2SIn CLK:0 is already present
[ 6.979155@2] snd_tdm ff642000.audiobus:tdmc: ASoC: Failed to add I2SIn CLK: -16
[ 6.986507@2] aml_dai_tdm_probe, failed add snd tdm controls
[ 7.352482@2] edt_ft5x06 3-0038: touchscreen probe failed
[ 7.358175@2] rtc-hym8563 4-0051: hctosys: unable to read the hardware clock
[ 7.474199@2] thermal thermal_zone0: binding zone soc_thermal with cdev thermal-cpufreq-0 failed:-22
[ 7.477742@2] thermal thermal_zone0: binding zonSELinux: Could not open policy file <= /etc/selinux/targeted/policy/policy.32: No such file or directory
[ 12.408670@0] cgroup: cgroup2: unknown option “nsdelegate”
[ 13.437478@0] meson-mmc: sdio: resp_timeout,vstat:0x9dff0800,virqc:3fff
[ 13.438450@0] meson-mmc: sdio: err: wait for desc write back, bus_fsm:0x7
[ 13.446266@0] meson-mmc: sdio: resp_timeout,vstat:0x9dff0800,virqc:3fff
[ 13.451795@0] meson-mmc: sdio: err: wait for desc write back, bus_fsm:0x7
[ 13.463156@0] meson-mmc: sdio: resp_timeout,vstat:0xa1ff2800,virqc:3fff
[ 13.465145@0] meson-mmc: sdio: err: wait for irq service, bus_fsm:0x8
[ 13.636079@5] meson-mmc: Tuning transfer error: nmatch=0 tuning_err:0xffffffac
[ 13.690883@5] meson-mmc: Tuning transfer error: nmatch=0 tuning_err:0xffffffac
[ 14.058678@4] No find node.
[ 14.115102@4] Amlogic A/V streaming port init
[ 14.210480@5] meson-fb meson-fb: create ion_client ffffffc09a7736c0, handle=ffffffc09b29acc0
[ 14.213341@5] meson-fb meson-fb: ion memory(1): created fb at 0x00000000ea400000, size 1 MiB
[ 14.215121@4] iq name from dts config is ----> os08a10
[ 14.236941@4] config sensor os08a10 driver.
[ 14.239208@4] pwr_enable: get_named_gpio power-enable fail
[ 14.241020@4] set power fail
[ 14.255168@4] arm_sensor_i2c_probe: start to probe
[ 14.255464@4] system_i2c_init:success to add i2c driver
[ 14.259709@4] system_i2c_read:failed to read reg data: rc -6, saddr 0x36
[ 14.266356@4] system_i2c_read:failed to read reg data: rc -6, saddr 0x36
[ 14.273031@4] system_i2c_read:failed to read reg data: rc -6, saddr 0x36
[ 14.302435@4] system_i2c_read:failed to read reg data: rc -6, saddr 0x36
[ 14.303676@4] system_i2c_read:failed to read reg data: rc -6, saddr 0x36
[ 14.310393@4] system_i2c_read:failed to read reg data: rc -6, saddr 0x36
[ 15.226459@5] meson-fb meson-fb: create ion_client ffffffc09a7736c0, handle=ffffffc088d63c00
[ 15.229300@5] meson-fb meson-fb: ion memory(2): created fb at 0x00000000ea500000, size 1 MiB
[ 16.253983@5] meson-fb meson-fb: create ion_client ffffffc09a7736c0, handle=ffffffc088d63d40
[ 16.256779@5] meson-fb meson-fb: ion memory(3): created fb at 0x00000000ea600000, size 8 MiB
[ 28.386690@4] meson-remote ff808040.rc: remote_ioctl invalid user space pointer
[ 30.227915@1] meson-mmc: Tuning transfer error: nmatch=0 tuning_err:0xffffffac
[ 30.253000@0] meson-mmc: Tuning transfer error: nmatch=0 tuning_err:0xffffffac
[ 30.569657@0] CONFIG-ERROR) dhd_conf_set_intiovar: txbf setting failed -23
Ubuntu 20.04.3 LTS Khadas ttyS0
Khadas login:
khadas login:
Password:
Welcome to Fenix 1.0.9 Ubuntu 20.04.3 LTS Linux 4.9.241
| |/ / |__ __ _ | | __ _ ___ \ \ / / | / |_ /
| ’ /| '_ \ / |/ _ |/ ` / _| \ \ / / | || |/| | | \
| . | | | | (| | (| | (| _ \ \ V / | || | | |) |
||__| ||_,|_,|_,|/ _/ ||| ||___/
- Website: https://www.khadas.com
- Documentation: https://docs.khadas.com
- Forum: https://forum.khadas.com
To run a command as administrator (user “root”), use "sudo ".
See “man sudo_root” for details.
khadas@Khadas:~$
You got it running.
Should see the desktop on the HDMI monitor.
Heartbeat
Do I have to write any command before? I only connect khadas Vim to projector an to power adapter
No, with the gnome the desktop will be live on the monitor when you see the login in prompt on the terminal.
It should have had a “login” box visible.
It might have a hardware issue with the HDMI chip.
