Custom MIPI Camera

JohnGalt · September 2, 2024, 3:17am

I would like to add a custom MIPI Camera to VIM 3 and VIM 3L running Android 9 (or above).

I know that Khadas don’t support third party cameras, but maybe you could give some tips or ideas.

I had success building a custom MIPI display, touchscreen, flats and compiling Android form VIM 3. So I have some knowledge about MIPI DSI for VIM3.

What I have for this new product:

Industrial sensors that uses a camera with MIPI CSI.
I already manufactured the cables to VIM 3 & 3L.
Cameras are 1 MP and uses just one lane.
I already control them using I2C.
Calibration is not a must (like color pallet and things like this). I also don´t need functions as zoom, fps adjustment, neither of that.

What I would like to ask:

How to add Camera2 app & SDL to Android 9 source ? (looks like it is on the image, but it is not working)
It is possible to force CSI to accept a “default” sensor ?
- I don’ t know the name of the sensor that goes inside of my camera (knowing this would make the work much easier, maybe you could suggest a way ?).
- Maybe one of the places to froce a default configuration would be “acamera_init” located on “vendor/amlogic/common/arm_isp/driver/linux/kernel/v4l2_dev/src/fw_lib/acamera.c” ?
- On vendor/amlogic/common/arm_isp/driver/linux/kernel/subdev/sensor/src/driver/sensor/ I saw aCameraDefault .c and .h but not much inside of the files. I don’t see for instance information about the lanes used as I saw in files like the IMX224 ones.

xiong.zhang · September 3, 2024, 2:19am

You can refer to the camera related modifications in the following path

vendor/amlogic/common/arm_isp/driver/linux/kernel/subdev/sensor/src/driver/sensor/IMX415_drv.c

You can refer to the submission below

xiong@builder:~/work/rockchip/vim3_64bit/vendor/amlogic/common/arm_isp$ git show 27c61a0030a2bfe920a08b8879e80349675130c0 --stat
commit 27c61a0030a2bfe920a08b8879e80349675130c0
Author: Xiong Zhang <xiong.zhang@wesion.com>
Date:   2023-01-05 11:16:34 +0800

    Camera: add khadas imx415 module support

    Signed-off-by: Xiong Zhang <xiong.zhang@wesion.com>

 driver/linux/kernel/subdev/iq/app/soc_iq.c                       |  7 ++++++-
 driver/linux/kernel/subdev/sensor/src/driver/sensor/IMX415_drv.c | 57 ++++++++++++++++++++++++++++++++++++++++++++++++++++++---
 2 files changed, 60 insertions(+), 4 deletions(-)
xiong@builder:~/work/rockchip/vim3_64bit/vendor/amlogic/common/arm_isp$ git show 27c61a0030a2bfe920a08b8879e80349675130c0

JohnGalt · September 10, 2024, 6:41pm

@xiong.zhang , thanks for the info.

Just double checking, with the IMX415 driver doesn use the pins of CSI connector CAM_PDN0, CAM_PDN1, CAM_MCLK, CAM_RESET. is this correct ?

(that’s what I understand by reading the code you suggested and the docs from dl.khadas.com - Index of /products/add-ons/imx415/datasheet/)

xiong.zhang · September 11, 2024, 1:14am

These few are extensions from tca6408. You can follow the modifications I made to add IMX415 above and do not need to use them, provided that your camera driver is correct

vendor/amlogic/common/arm_isp/driver/linux/kernel/subdev/sensor/src/driver/sensor/IMX415_drv.c

JohnGalt · September 12, 2024, 3:45am

@xiong.zhang , thanks.

Actually I’m writing the driver myself. The IMX415 files yousuggested are the ones that I’m trying to adapt.

It is not working yet and Iḿ having a “camera not found” error on Camera2 app.

Do you know if there is a simple camera example with only D-Phy ? (= MIPI lanes). Today I use other board to activate the camera over I2C (that part is working) and the idea is to only use Khadas to receive the images to process.

xiong.zhang · September 12, 2024, 6:20am

Has DTS added the corresponding camera

xiong.zhang · September 12, 2024, 6:23am

Does the pin definition match our motherboard

JohnGalt · September 12, 2024, 1:13pm

Thanks for the info.

About the pinouts, yes, the pinouts are OK. It is a 1 MP that uses just one lane so I use the pins marked in red 17, 18, 14 and 15 (the clock lanes and the D0 data lanes). I also use the I2C pins connected to other board to control the camera (this part is working - btw it is an industrial device so I only need to turn it on, the is no zoom or other funcions).

JohnGalt · September 12, 2024, 10:21pm

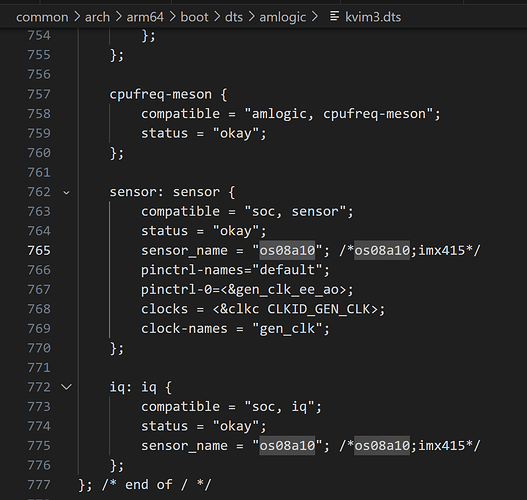

About DTS, I tried to force the imx415 with things like…

kvim3.dts:

sensor: sensor {
		compatible = "soc, sensor";
		status = "okay";
		//
		//sensor_name = "os08a10"; /*os08a10;imx415*/
		sensor_name = "imx415"; /*os08a10;imx415*/

		pinctrl-names="default";
		pinctrl-0=<&gen_clk_ee_ao>;
		clocks = <&clkc CLKID_GEN_CLK>;
		clock-names = "gen_clk";
	};

	iq: iq {
		compatible = "soc, iq";
		status = "okay";
		//
		//sensor_name = "os08a10"; /*os08a10;imx415*/
		sensor_name = "imx415"; /*os08a10;imx415*/
	};

cmd_kbi.c:

static int do_check_camera(cmd_tbl_t * cmdtp, int flag, int argc, char * const argv[])
{

	khadas_camera_id = camera_i2c_read(0x00,IMX415_CHIP_ADDR);
	printf("khadas camera id=0x%x\n",khadas_camera_id);
	//
	//if(khadas_camera_id == 0x00) {// IMX415 = 0x00
		khadas_camera_id = 2;
		setenv("khadas_camera_id", "2");
	//} else {
	//	khadas_camera_id = 1;
	//	setenv("khadas_camera_id", "1");
	//}
	printf("khadas_camera_id=%d   id=1---is OS08A10   id=2---is IMX415\n",khadas_camera_id);


	return 0;
}

I also disabled the IMX415 calibrations on soc_iq.c

And on IMX415_drv.c I also disabled all the I2C communications - as this is done with other board, and on supported_modes I adjusted the resolution. width, resolution.height. lanes (in my case just one) and bits (in my case 8).

Some questions:

Do you know if these supported_modes are used by the MIPI D-Phy or are only sent to the scanner over I2C ?
Do you know where the code starts the MIPI signal (data lane) listening ?

Iḿ aware that these are very specific questions

xiong.zhang · September 13, 2024, 1:04am

Just disable the camera detection switch below

xiong@server:/users/xiong/work/amlogic/vim3/vim3_64bit/bootloader/uboot$ git diff
diff --git a/board/khadas/kvim3/kvim3.c b/board/khadas/kvim3/kvim3.c
index 7ca8897a93..dff163bdbe 100644
--- a/board/khadas/kvim3/kvim3.c
+++ b/board/khadas/kvim3/kvim3.c
@@ -772,7 +772,7 @@ int board_late_init(void)
                                                "defenv_reserv; setenv upgrade_step 2; saveenv; fi;", 0);
                /*add board late init function here*/
                run_command("kbi check_panel", 0);//kbi check_panel - check TS050 or TS101
-               run_command("kbi check_camera", 0);//kbi check_camera - check OS08A10 or IMX415
+               //run_command("kbi check_camera", 0);//kbi check_camera - check OS08A10 or IMX415
                run_command("kbi check_m2x", 0);//check M2X
 #ifndef DTB_BIND_KERNEL
                int ret;

xiong.zhang · September 13, 2024, 1:06am

Did you modify the code based on IMX415? Then you can send me the boot log to take a look

JohnGalt · September 16, 2024, 1:47am

Thanks for the tips. I modified kvim3c as suggested.

Yes, I’m modifying the code based on IMX415

I got some interesting stuff like:

[ 1402.872685@2]
[ 1403.019657@2] sensors 4-000e: set sensor poll time to 66ms
[ 1410.179586@2] isp_v4l2_stream_try_format@:1322 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x59455247.
[ 1410.187070@4]
[ 1410.194863@4] isp_v4l2_stream_try_format@:1322 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x59455247.
[ 1410.202194@4]
[ 1410.231364@4] isp_v4l2_s_fmt_vid_cap@:384 GENERIC(CRIT) :isp_v4l2_s_fmt_vid_cap sid:0
[ 1410.233610@4] fw_intf_stream_set_resolution@:643 GENERIC(CRIT) :Leaving same sensor settings resolution : width = 1280, height = 800 (preset idx = 0)
[ 1410.249977@3] AM_MIPI: am_mipi_init:Success mipi init
[ 1410.251927@3] AM_ADAP: inject_data_flag = 0, dump_data_flag = 0
[ 1410.259051@4] AM_ADAP: frontend : width = 1280, val = 80
[ 1410.319964@4] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1410.430932@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1410.631524@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1410.784826@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1410.900573@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1410.925632@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1411.006791@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1411.050475@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1411.136044@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1411.189183@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1411.215385@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1411.297648@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1412.242692@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 1, skip this frame.
[ 1412.324683@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1412.346747@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1412.381079@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1412.449790@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1412.491936@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1412.522245@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1412.628130@0] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 0, skip this frame.
[ 1552.707777@0] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 11, bssidx: 0
[ 1827.873172@0] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 12, bssidx: 0
[ 1987.873200@0] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 13, bssidx: 0
[ 2147.873951@0] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 14, bssidx: 0
[ 2231.488226@2] input input2: key 116 down.
[ 2231.756190@2] input input2: key 116 up.
[ 2232.334819@2] sensors 4-000e: set sensor poll time to 66ms
[ 2232.336230@4] sensors 4-000e: set sensor poll time to 200ms
[ 2232.351079@4] AM_MIPI: am_mipi_deinit:Success mipi deinit

and


[   14.135556@2] sensor_get_id@:373 GENERIC(CRIT) :sensor_get_id: Failed to read sensor imx415 id
[   14.143297@2]
[   14.145766@2] sensor_get_id@:373 GENERIC(CRIT) :sensor_get_id: Failed to read sensor imx415 id
[   14.153521@2]
[   14.155162@2] sensor_detect_imx415 id:0xff
[   14.159267@2] arm_sensor_i2c_remove: remove i2c sensor
[   14.298340@5] arm_isp ff140000.isp: assigned reserved memory node linux,isp_cma
[   14.300029@5] AM_SC: am_sc_parse_dt: rs idx info: name: isp_sc
[   14.305866@5] AM_SC: am_sc_parse_dt:rs info: irq: 59
[   14.315981@0] interrupt comes in (irq = 60) without app handler, status: 0x200, pusle mode:0
[   14.323271@0] acamera_fw_init@:106 GENERIC(CRIT) :seamless:0
[   14.338886@2] init clock is 24 MHZ
[   14.380543@2] arm_sensor_i2c_probe: start to probe
[   14.380616@2] arm_sensor_i2c_probe: success get link device:phy-csi
[   14.386052@2] AM_MIPI: am_mipi_parse_dt:Success to get link device: isp-adapter
[   14.393294@2] platform ff650000.isp-adapter: assigned reserved memory node linux,adapt_cma
[   14.401460@2] AM_ADAP: adapter alloc 24M memory
[   14.406050@2] system_i2c_init:success to add i2c driver
[   14.517549@2] sensor_get_id@:373 GENERIC(CRIT) :sensor_get_id: Failed to read sensor imx415 id
[   14.520517@2]

Please note the “format 0x00000000 is not supported” - thatś because I disabled the I2C line of Khadas and using another board.

So I’m forcing the pixel format on isp_v4l2-stream.c

#define ISP_DEFAULT_FORMAT V4L2_PIX_FMT_NV12

I’m not sure yet if it is NV12. What I know for sure is that it is 8 bit pixel.

On imx415_drv.c I also made some modifications:


static sensor_mode_t supported_modes[] = {
    {
//Outros modos
/*
wdr:
 WDR_MODE_LINEAR
 WDR_MODE_NATIVE
WDR_MODE_FS_LIN
WDR_MODE_COUNT

dol type
	DOL_NON = 0,
	DOL_VC,
	DOL_LINEINFO,

    bayer:
    BAYER_GBRG
    BAYER_GRBG

*/
        .wdr_mode = WDR_MODE_NATIVE , //WDR_MODE_FS_LIN, //WDR_MODE_LINEAR,
        .fps = 30 * 256,
        .resolution.width = 1280, //3840,
        .resolution.height = 800, //2160,
        .bits = 8, //10,
        .exposures = 1,
        .lanes = 1, //era 4,
        .bps = 360, //720,
        .bayer = BAYER_GBRG,
        .dol_type = DOL_VC, //DOL_NON,
        .num = 0,
    },
    {
        .wdr_mode = WDR_MODE_FS_LIN,
        .fps = 30 * 256,
        .resolution.width = 1280, //era 3840,
        .resolution.height = 800, //era 2160,
        .bits = 8, //10,
        .exposures = 2,
        .lanes =  1, //era 4,
        .bps = 1440,
        .bayer = BAYER_GBRG,
        .dol_type = DOL_VC,
        .num = 7,
    },
    {
        .wdr_mode = WDR_MODE_LINEAR,
        .fps = 30 * 256,
        .resolution.width = 1280, //1920,
        .resolution.height = 800, //1080,
        .bits = 8, //10,
        .exposures = 1,
        .lanes =  1, //era 4,
        .bps = 720,
        .bayer = BAYER_GBRG,
        .dol_type = DOL_NON,
        .num = 2,
    },
    {
        .wdr_mode = WDR_MODE_FS_LIN,
        .fps = 30 * 256,
        .resolution.width = 1280, //1920,
        .resolution.height = 800, //1080,
        .bits = 8, //10,
        .exposures = 2,
        .lanes =  1, //era 4,
        .bps = 1440,
        .bayer = BAYER_GBRG,
        .dol_type = DOL_VC,
        .num = 3,
    },
};

JohnGalt · September 16, 2024, 1:56am

I also have 2 complicated and ultra specific questions:

do you know if:

		{
			.name = "GREY",
			.fourcc = V4L2_PIX_FMT_GREY,
			.depth = 8,
			.is_yuv = true,
			.planes = 1,
		},

of isp-v42l-stream.c is the same as RAW8 ? (I found RAW16 but not RAW8).

Do you know how to send blocks of bytes to I2C ?
I found the command acamera_sbus_write_u8, but looks like it only send a bit. So it start the I2C line, send the header with the address of the device, and then one Byte.
In my case I need to send several bytes at a time and the checksum. I was wondering to make connect the I2C to Khadas board to activate the camera.

Btw, for these tests Iḿ using VIM3, more than one, just in case.

xiong.zhang · September 18, 2024, 1:14am

Which I2C channel are you disabling?

I2C4 cannot be disabled

sensor-i2c@6c {
		compatible = "arm, i2c-sensor";
		reg = <0x6c>;
		reg-names = "i2c-sensor";
		slave-addr = <0x6c>;
		reg-type = <2>;
		reg-data-type = <1>;
		link-device = <&phycsi>;
	};

JohnGalt · September 18, 2024, 3:17am

I mean physically disabled. The I2C lines of VIM3 CSI are connected no-where.

The D-Phy lines of the sensor (MIPI CLK and MIPI data lane) are connected to a VIM3 with the correct pin out.

The I2C line is connected to other board (for testing purposes I’m using an Arduino). So I start the camera over I2C from Arduino and Camera2 on VIM3 at same time.

JohnGalt · September 20, 2024, 1:55am

@xiong.zhang, I made some progress here.

As I stated, my format is raw8 monochrome. So I changed camera_metadata_tags.h and changed amera_metadata_enum_android_scaler_available_formats to force RAW16 to use the same prefix as RAW8:

// ANDROID_SCALER_AVAILABLE_FORMATS
typedef enum camera_metadata_enum_android_scaler_available_formats {

    //changed
    ANDROID_SCALER_AVAILABLE_FORMATS_RAW16                           = 0x2A, //was  0x20, // HIDL v3.2

    //I added, for future use
    ANDROID_SCALER_AVAILABLE_FORMATS_RAW8                           = 0x2A, // HIDL v3.2

    ANDROID_SCALER_AVAILABLE_FORMATS_RAW_OPAQUE                      = 0x24, // HIDL v3.2
    ANDROID_SCALER_AVAILABLE_FORMATS_YV12                            = 0x32315659, // HIDL v3.2

Now the Camera accepts the data. It shows the menu “Camera / VIdeo” as see in the pictutes and also a tiny line on the top of the screen with changes as I start the camera (using the independent I2C board, in this case an Arduino)

Log files from the VIM3 serial (maybe doesn help much):


[  124.771970@4] asoc-aml-card auge_sound: tdm playback stop
[  124.793168@2] type=1400 audit(1293883323.328:91): avc: denied { write } for pid=4074 comm="droid.launcher3" name="property_service" dev="tmpfs" ino=14232 scontext=u:r:priv_app:s0:c512,c768 tcontext=u:object_r:property_socket:s0 tclass=sock_file permissive=1
[  124.815989@2] type=1400 audit(1293883323.328:91): avc: denied { write } for pid=4074 comm="droid.launcher3" name="property_service" dev="tmpfs" ino=14232 scontext=u:r:priv_app:s0:c512,c768 tcontext=u:object_r:property_socket:s0 tclass=sock_file permissive=1
[  124.838622@2] type=1400 audit(1293883323.328:92): avc: denied { connectto } for pid=4074 comm="droid.launcher3" path="/dev/socket/property_service" scontext=u:r:priv_app:s0:c512,c768 tcontext=u:r:init:s0 tclass=unix_stream_socket permissive=1
[  124.932905@3] asoc-aml-card auge_sound: tdm playback enable
[  134.644010@3] isp_v4l2_stream_try_format@:1338 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x32525942.
[  134.651528@2]
[  134.653507@2] isp_v4l2_stream_try_format@:1338 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x32525942.
[  134.666053@3]
[  134.681479@1] type=1400 audit(1293883323.328:92): avc: denied { connectto } for pid=4074 comm="droid.launcher3" path="/dev/socket/property_service" scontext=u:r:priv_app:s0:c512,c768 tcontext=u:r:init:s0 tclass=unix_stream_socket permissive=1
[  134.697436@2] type=1400 audit(1293883333.268:93): avc: denied { open } for pid=3215 comm="Binder:3215_3" path="/dev/__properties__/u:object_r:media_prop:s0" dev="tmpfs" ino=14186 scontext=u:r:cameraserver:s0 tcontext=u:object_r:media_prop:s0 tclass=file permissive=1
[  134.721070@2] type=1400 audit(1293883333.268:93): avc: denied { open } for pid=3215 comm="Binder:3215_3" path="/dev/__properties__/u:object_r:media_prop:s0" dev="tmpfs" ino=14186 scontext=u:r:cameraserver:s0 tcontext=u:object_r:media_prop:s0 tclass=file permissive=1
[  134.744437@2] type=1400 audit(1293883333.268:94): avc: denied { getattr } for pid=3215 comm="Binder:3215_3" path="/dev/__properties__/u:object_r:media_prop:s0" dev="tmpfs" ino=14186 scontext=u:r:cameraserver:s0 tcontext=u:object_r:media_prop:s0 tclass=file permissive=1
[  135.181935@2] isp_v4l2_stream_try_format@:1338 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x32525942.
[  135.189878@2]
[  135.192977@2] isp_v4l2_stream_try_format@:1338 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x32525942.
[  135.203722@5]
[  135.381721@5] isp_v4l2_s_fmt_vid_cap@:384 GENERIC(CRIT) :isp_v4l2_s_fmt_vid_cap sid:0
[  135.383915@5] fw_intf_stream_set_resolution@:634 GENERIC(CRIT) :Setting new resolution : width = 1280, height = 800 (preset idx = 0, fps = 30)
[  135.500574@3] AM_MIPI: am_mipi_init:Success mipi init
[  135.500606@3] AM_ADAP: inject_data_flag = 0, dump_data_flag = 0
[  135.507264@3] AM_ADAP: frontend : width = 1280, val = 80
[  135.511182@3] sensor_set_mode@:535 GENERIC(CRIT) :Mode 0, Setting num: 0, RES:1280x800
[  135.519070@3]
[  135.520791@3] get_cali_name_id@:169 SUBDEV_IQ(CRIT) :Loading Calibration for IMX415
[  135.528456@3]
[  135.529972@3] iq_ioctl@:260 SUBDEV_IQ(CRIT) :soc_iq get config imx415 according to sensor drv
[  135.543448@4] AM_MIPI: am_mipi_init:Success mipi init
[  135.543491@4] AM_ADAP: inject_data_flag = 0, dump_data_flag = 0
[  135.550594@4] AM_ADAP: frontend : width = 1280, val = 80
[  140.669060@4] acamera_interrupt_handler@:577 GENERIC(CRIT) :DMA is not finished, cfg: 0, meter: 1, skip this frame.
[  154.856729@1] binder: send failed reply for transaction 56033 to 3401:3416
[  154.890464@3] sensors 4-000e: set sensor poll time to 66ms
[  155.565047@0] AM_MIPI: am_mipi_deinit:Success mipi deinit
[  155.565120@0] fw_intf_stream_stop@:448 GENERIC(CRIT) :Stream off 0, user: 1
[  155.571753@0]
[  156.630624@0] isp_v4l2_stream_try_format@:1338 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x32525942.
[  156.640211@2]
[  156.648060@2] isp_v4l2_stream_try_format@:1338 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x32525942.
[  156.655578@2]
[  157.152948@2] isp_v4l2_stream_try_format@:1338 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x32525942.
[  157.161643@3]
[  157.166840@3] isp_v4l2_stream_try_format@:1338 GENERIC(CRIT) :[Stream#0] format 0x00000000 is not supported, setting default format 0x32525942.
[  157.174901@2]
[  157.311876@2] isp_v4l2_s_fmt_vid_cap@:384 GENERIC(CRIT) :isp_v4l2_s_fmt_vid_cap sid:0
[  157.314077@2] fw_intf_stream_set_resolution@:643 GENERIC(CRIT) :Leaving same sensor settings resolution : width = 1280, height = 800 (preset idx = 0)
[  157.336774@4] AM_MIPI: am_mipi_init:Success mipi init
[  157.336808@4] AM_ADAP: inject_data_flag = 0, dump_data_flag = 0
[  157.343796@3] AM_ADAP: frontend : width = 1280, val = 80
[  161.293172@1] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 3, bssidx: 0
[  185.656517@1] type=1400 audit(1293883333.268:94): avc: denied { getattr } for pid=3215 comm="Binder:3215_3" path="/dev/__properties__/u:object_r:media_prop:s0" dev="tmpfs" ino=14186 scontext=u:r:cameraserver:s0 tcontext=u:object_r:media_prop:s0 tclass=file permissive=1
[  185.661186@5] sensors 4-000e: set sensor poll time to 66ms
[  185.680385@5] type=1400 audit(1293883384.240:95): avc: denied { write } for pid=4074 comm="droid.launcher3" name="property_service" dev="tmpfs" ino=14232 scontext=u:r:priv_app:s0:c512,c768 tcontext=u:object_r:property_socket:s0 tclass=sock_file permissive=1
[  185.703086@5] type=1400 audit(1293883384.240:95): avc: denied { write } for pid=4074 comm="droid.launcher3" name="property_service" dev="tmpfs" ino=14232 scontext=u:r:priv_app:s0:c512,c768 tcontext=u:object_r:property_socket:s0 tclass=sock_file permissive=1
[  185.726051@5] type=1400 audit(1293883384.244:96): avc: denied { connectto } for pid=4074 comm="droid.launcher3" path="/dev/socket/property_service" scontext=u:r:priv_app:s0:c512,c768 tcontext=u:r:init:s0 tclass=unix_stream_socket permissive=1
[  244.372134@0] USB RESET
[  244.503952@0] USB RESET
[  244.656031@0] configfs-gadget gadget: high-speed config #1: b
[  244.657519@0] android_work: sent uevent USB_STATE=CONFIGURED
[  244.876206@0] USB RESET
[  245.004980@0] USB RESET

JohnGalt · September 20, 2024, 2:02am

@xiong.zhang it wopuld be possible for Khadas to implement RAW8 for the camera ?

If not, do you know where do I need to change to make RAW16 behaves as RAW8. Comments all over the code states that the formats are very similar with just some slight changes.

JohnGalt · September 20, 2024, 2:04am

@xiong.zhang, I also found this v42l_test.c which sound like some executable that could help a lot. Do you know something about it ?

Looks like it allows me to call it sending some parameters - that is it would allow me to make tests without the need to recompile everything.

JohnGalt · September 24, 2024, 4:54am

@xiong.zhang, I made more progress here and got some screens with aleatory pixels.

But I made a new discover: my camera also send data in JPEG format. There is a way to receive the JEPG 8bit stream from the camera ? If I understant right I can do it without ISP, which could make things easier.
