Cannot configure gpio to irq mode

VIM3
1

Hi, I have a problem on configure GPIOA_1 to irq mode

I tested on AOSP main, kernel 6.1

I want to use GPIOA_1 for irq, but gpio_to_irq return -6
So I can’t request irq by irq num.

I had read the A311D DS, it seems gpio num cannot simply map to irq num.
A311D has 8 gpio irq channels, user should configure gpio lines into irq controller.
Maybe we should do this mapping instead of gpio_to_irq for getting the target irq num.
Is there any sample code for gpio irq configuration?

Here is my config and code for GPIOA_1
gpio work fine but only irq is not working

DTS:
irq-gpio  = <&gpio GPIOA_1 0>; // GPIOA_1-I2SB_SCLK

code:
hw_res.irq_gpio = of_get_named_gpio(np, "irq-gpio", 0);
client->irq = gpio_to_irq(hw_res.irq_gpio);
if (client->irq < 0) {
    // client->irq got -6
    return;
}
devm_request_irq(i2c_dev, client->irq, irq_handler,
    IRQF_TRIGGER_HIGH, name, NULL);
2

@xiong.zhang
Is there easy way to make the irq working?

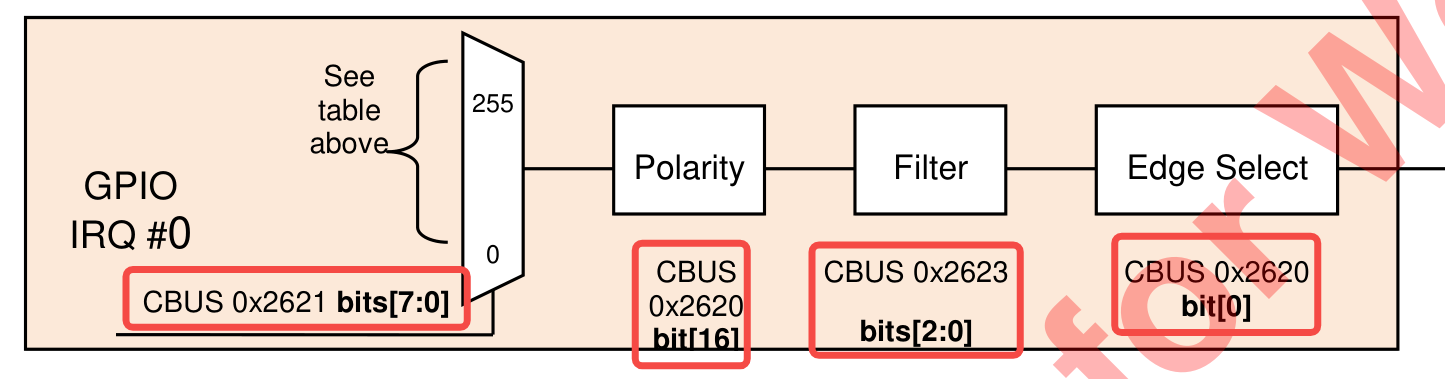

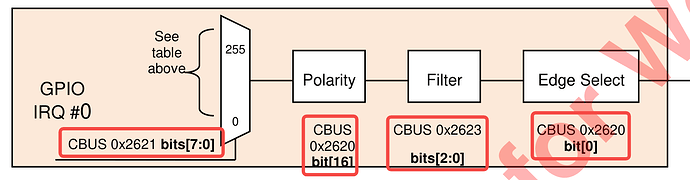

image1445×379 49.6 KB

Maybe we can just configure these regs for the GPIOA_1 by physical address, and find the irq num in kernel

include/linux/amlogic/aml_gpio_consumer.h
AML_GPIO_IRQ marco in doc for AndroidP is not found in kernel 6.1

3

Hello, we do not maintain AOSP. This is the trial version. If you want to use it, please use the Android 9.0 system. Sorry

4

irq driver is already in android common kernel 6.1 => common/drivers/irqchip/irq-meson-gpio.c

gpio driver for A311D does not impl the “to_irq” func, so we cannot use gpio_to_irq in our device driver.

GPIO irq related code is update in linux mainline, we can get those update from mainline:

1、get the amlogic,meson-g12a-gpio-intc.h file from github and place into common/include/dt-bindings/interrupt-controller/
include/dt-bindings/interrupt-controller/amlogic,meson-g12a-gpio-intc.h

2、include the header in your dts
e.g. common/arch/arm64/boot/dts/amlogic/meson-khadas-vim3.dtsi

#include <include/dt-bindings/interrupt-controller/amlogic,meson-g12a-gpio-intc.h>

3、add gpio irq conf into your dts node

&i2c_AO {
        status = "okay";
        pinctrl-0 = <&i2c_ao_sck_pins>, <&i2c_ao_sda_pins>;
        pinctrl-names = "default";
        clock-frequency = <400000>;

    nfc@28 {
        status = "okay";
        compatible = "tms,nfc";
        reg = <0x28>;
        tms,irq-gpio      = <&gpio GPIOA_1 0>; // GPIOA_1-I2SB_SCLK

        // add for GPIOA_1 irq
        interrupt-parent = <&gpio_intc>;
        interrupts = <IRQID_GPIOA_1 IRQ_TYPE_LEVEL_HIGH>;
    };
};

4、get irq num in code and register irq handler

// client->irq = gpio_to_irq(irq_gpio); // not support gpio_to_irq, the irq num is already parse in i2c core from dts and store in client->irq
ret = devm_request_irq(i2c_dev, client->irq, nfc_irq_handler,
    IRQF_TRIGGER_HIGH, name, NULL);
