YOLOv8n VIM3 Demo is too slow

VIM3
1

Which system do you use? Android, Ubuntu, OOWOW or others?

Ubuntu

Which version of system do you use? Please provide the version of the system here:

Linux Khadas 5.15.119 #1.6.4 SMP PREEMPT Sat Feb 3 11:21:08 CST 2024 aarch64 aarch64 aarch64 GNU/Linux

Please describe your issue below:

Issue 1

I tried to make a program through the link above.

I modified main.cpp to allow the use of video in programs via existing cameras.
No changes were made except for main.cpp.

Didn’t change anything except main.cpp.

  • Then I measured the processing speed.
    $ ./bin_r_cv4/yolov8n_demo_x11_usb -m ./nn_data/yolov8n_88.nb -v ./road5_640.mp4 -w 640 -h 360
    Preprocess Time: 0.123304 sec
    Inference Time: 0.041984 sec
    Postprocess Time: 0.074343 sec

  • When tested with Python, the speedup was as follows:
    Preprocess Time: 0.0165 sec
    Inference Time: 0.1092 sec
    Postprocess Time: 0.0364 sec

The inference time has been greatly reduced, but conversely, the pre/post-processing time has increased significantly.

Is there something wrong with my settings or code?

I would like to know how fast it works for others when running the demo and if there is a way to make it faster.

Issue 2

I tried converting the model myself by looking at “YOLOv8n VIM3 Demo Lite - 2”.
https://docs.khadas.com/products/sbc/vim3/npu/vim3_demo_lite/yolov8n

The folder attached below was created.

I put vnn_yolov8n.c and vnn_yolov8n.h from the created folder into the video program I modified and compiled it.

  • Then I ran it as follows:
    $ ./bin_r_cv4/yolov8n_demo_x11_usb -m ./nn_data/yolov8n.nb -v ./road5_640.mp4 -w 640 -h 360
    Preprocess Time: 0.120346 sec
    Inference Time: 0.033668 sec
    Postprocess Time: 1.804054 sec

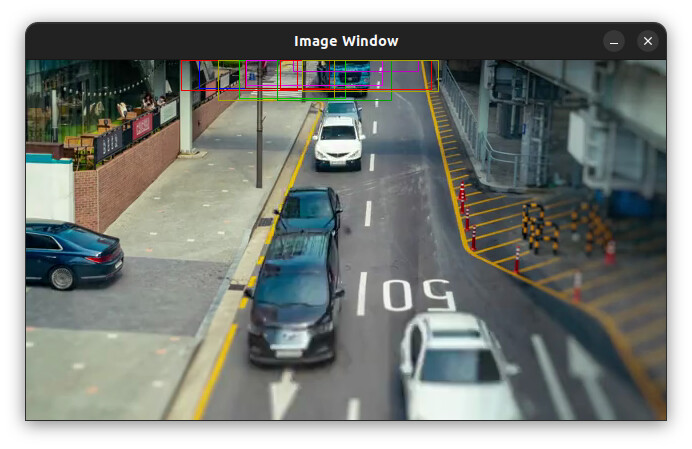

image692×449 83.9 KB

The post-processing time jumped and the accuracy was not at all satisfactory.

My output structure is

[80, 80, 144, 1]
[40, 40, 144, 1]
[20, 20, 144, 1]

And the output structure of the existing demo was like this.

[144, 80, 80, 1]
[144, 40, 40, 1]
[144, 20, 20, 1]

What’s the problem?

Your kind response would be greatly appreciated.

2

https://drive.google.com/drive/folders/1c1ro2yL3E7nsb3iVYxO5s8xRg8BS21IC?usp=sharing

Here is my source code.

3

Hello @GHdevlog ,

About Iusse 1, i simply tested our demo that also spend time like you. I push the problem to our engineer. I will tell you at once when i receive feedback.

About Iusse 2, sorry i check the doc has mistake. the right output is (1, 80, 80, 144). Modify the line as follow in head.py.

def forward_export(self, x):
    results = []
    for i in range(self.nl):
        dfl = self.cv2[i](x[i]).contiguous()
        cls = self.cv3[i](x[i]).contiguous()
-        results.append(torch.cat([cls, dfl], 1))
+        results.append(torch.cat([cls, dfl], 1).permute(0, 2, 3, 1))
    return tuple(results)
4

Thanks to @Louis-Cheng-Liu

Issue 2

I converted the model again according to your instructions.

  • input - [640, 640, 3, 1]
    output - [144, 80, 80, 1]
    [144, 40, 40, 1]
    [144, 20, 20, 1]

I had a lot of thoughts on how to change the dimension order of the output values, but thanks to this, I was able to solve it easily.

Afterwards I replaced the files in my program with the files generated according to your instructions.

  • Preprocess Time: 0.122897 sec
    Inference Time: 0.041305 sec
    Postprocess Time: 0.073177 sec

And when I ran it, the processing speed was as above, and it improved to a speed similar to the demo code.
The predictions were also produced correctly.

I hope that Issue 1 will also be improved and good results will be achieved.

Thank you again.

5

Hello @GHdevlog ,

About Issue 1, the preprocess and postprocess need to modify. Our engineer will improve the them next two week. If update, i will notice you.
