NPU what operations does it support

VIM3
#1

What are the operations that the NPU can perform.

I.e convolution? what is the maximum kernel size

other than convolution can it perform any other operation?

#2

@numbqq @Frank response.

#3

@krishnak About these questions, because of some irresistible factors, we will reply you next week.

#4

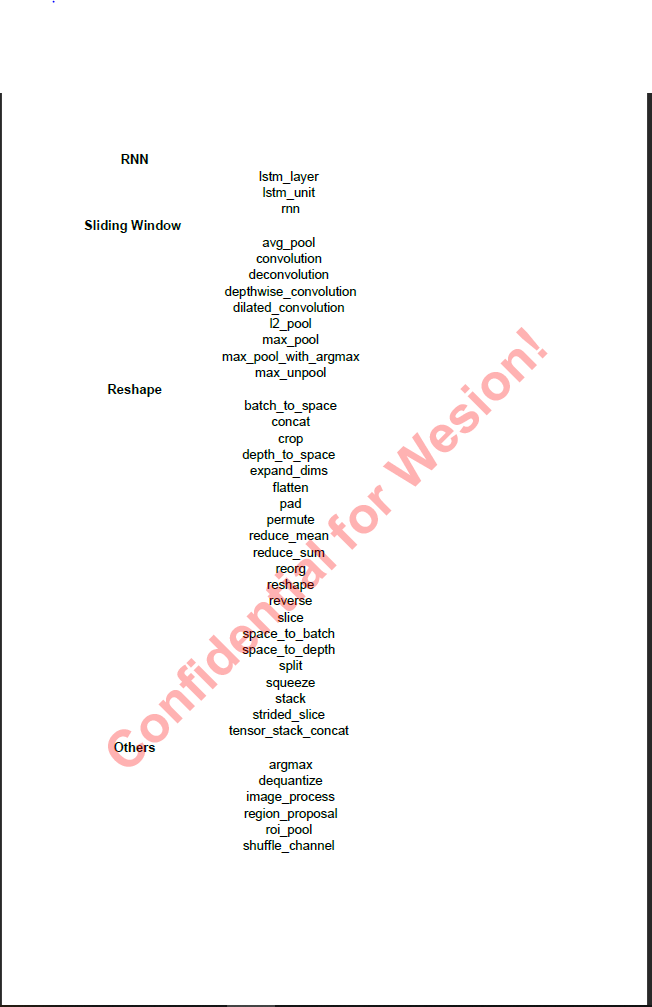

1
1650×917 34.6 KB

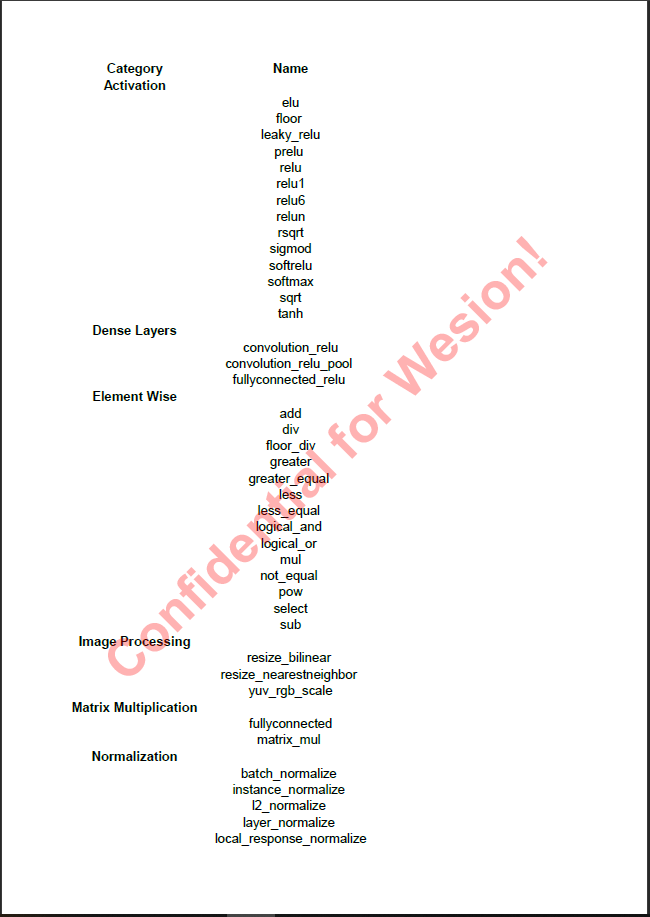

2
2652×1007 33 KB

I found these on NPU SDK… It doesn’t mention what kernel size is supported

#5

You can check the datasheet of NPU here: https://dl.khadas.com/Hardware/VIM3/Datasheet/A311D_Datasheet_04_Wesion.pdf

8.6 NPU

#6

thanks for the documentation, can you let me know whether there is a RAM limitation on the NPU or can it use all the available RAM for its operation

#7

@numbqq Can you also let me know the supported operations on VIM3L

#8

I don’t have such documentation now. I’m not sure whether it is the same for A311D.

#9

Is documentaion available with Amlogic? Can you get the document at some point in near future. When was the chipset released? I would like to see the difference considering this one is 1.2 TOPS and the other one is 5 TOPS. Is there a MIPI camera available which can be ordered along with the board?

#10

@krishnak We can get this information, but it takes time to communicate. We have a Mipi camera, which will go online in the future. You can see the introduction of this camera in our YouTube video about NPU

#11

the video says VIM3L can only support USB camera, does it mean it has to run a full OS for NPU operation.

#12

Both VIM3 and VIM3L should run an OS (ubuntu or android) to make use of the NPU… As for the camera VIM3L does have a MIPI port so It should be able to support a MIPI camera as VIM3

#13

The video on youtube clearly states VIM3L chip lacks ISP and hence it can only use a USB camera

#14

VIM3L also can support the MIPI camera which has a ISP buildin, but we don’t have samples at current stage.So you have to use the USB camera now.
