Building Android Pie for VIM3

Parth_Prajapati · October 14, 2021, 10:52am

Yes, If I remove GApps then it boots successfully.
If I add GApps then it gets stuck on recovery mode.

jasonl · October 14, 2021, 11:44am

i will check this problem later

Parth_Prajapati · October 14, 2021, 11:46am

Generating build after making selinux desabled.
@Terry Do I need to add root in ‘vendor/amlogic’ in vim3 android 9 sdk to work with GApps?

Constantly getting this logs on serial port after adding GApps.

Logs:

init: Unable to set property ‘persist.audio.debug.search’ to ‘’ from uid:1041 gid:1005 pid:4576: SELinux permission check failed
[ 55.051027@5] selinux: avc: denied { set } for property=persist.audio.debug.read pid=4576 uid=1041 gid=1005 scontext=u:r:hal_audio_default:s0 tc0
[ 55.051027@5]
[ 55.051042@5] init: Unable to set property ‘persist.audio.debug.read’ to ‘’ from uid:1041 gid:1005 pid:4576: SELinux permission check failed
[ 55.140264@3] type=1400 audit(1293883253.192:44): avc: denied { create } for pid=4576 comm=“HwBinder:4576_2” scontext=u:r:hal_audio_default:s0 tco0
[ 56.010076@2] early_suspend_state=0
[ 56.287257@0] binder: undelivered TRANSACTION_COMPLETE
[ 56.287304@0] binder: undelivered transaction 21855, process died.
[ 59.768329@0] init: couldn’t write 4696 to /dev/cpuset/camera-daemon/tasks: No such file or directory
[ 60.017160@2] aml_tdm_open
[ 60.018408@5] aml_tdm_open
[ 60.019263@2] aml_spdif_open
[ 60.020087@2] aml_spdif_close
[ 60.022941@2] aml_tdm_open
[ 60.023083@5] type=1400 audit(1293883253.192:44): avc: denied { create } for pid=4576 comm=“HwBinder:4576_2” scontext=u:r:hal_audio_default:s0 tco0
[ 60.023102@5] type=1400 audit(1293883258.164:45): avc: denied { create } for pid=4700 comm=“HwBinder:4700_1” scontext=u:r:hal_audio_default:s0 tco0
[ 60.025568@2] selinux: avc: denied { set } for property=persist.audio.debug.search pid=4700 uid=1041 gid=1005 scontext=u:r:hal_audio_default:s0 0
[ 60.025568@2]
[ 60.025604@2] init: Unable to set property ‘persist.audio.debug.search’ to ‘’ from uid:1041 gid:1005 pid:4700: SELinux permission check failed
[ 60.025791@4] selinux: avc: denied { set } for property=persist.audio.debug.read pid=4700 uid=1041 gid=1005 scontext=u:r:hal_audio_default:s0 tc0
[ 60.025791@4]
[ 60.025803@4] init: Unable to set property ‘persist.audio.debug.read’ to ‘’ from uid:1041 gid:1005 pid:4700: SELinux permission check failed
[ 60.132746@2] loopback_dai_startup
[ 60.136431@4] loopback_dai_shutdown
[ 61.023686@3] early_suspend_state=0
[ 62.635706@0] fb: mem_free_work, free memory: addr:800000
[ 64.775699@0] init: couldn’t write 4819 to /dev/cpuset/camera-daemon/tasks: No such file or directory
[ 65.076863@2] aml_tdm_open
[ 65.077360@2] aml_tdm_open
[ 65.078050@2] aml_spdif_open
[ 65.079834@3] aml_spdif_close
[ 65.081531@5] selinux: avc: denied { set } for property=persist.audio.debug.search pid=4823 uid=1041 gid=1005 scontext=u:r:hal_audio_default:s0 0
[ 65.081531@5]
[ 65.081570@5] init: Unable to set property ‘persist.audio.debug.search’ to ‘’ from uid:1041 gid:1005 pid:4823: SELinux permission check failed
[ 65.081711@5] selinux: avc: denied { set } for property=persist.audio.debug.read pid=4823 uid=1041 gid=1005 scontext=u:r:hal_audio_default:s0 tc0
[ 65.081711@5]
[ 65.081722@5] init: Unable to set property ‘persist.audio.debug.read’ to ‘’ from uid:1041 gid:1005 pid:4823: SELinux permission check failed
[ 65.087724@5] type=1400 audit(1293883258.164:45): avc: denied { create } for pid=4700 comm=“HwBinder:4700_1” scontext=u:r:hal_audio_default:s0 tco0
[ 65.087747@5] type=1400 audit(1293883263.224:46): avc: denied { create } for pid=4823 comm=“HwBinder:4823_1” scontext=u:r:hal_audio_default:s0 tco0
[ 65.189830@3] aml_tdm_open
[ 65.192485@5] loopback_dai_startup
[ 65.195581@3] loopback_dai_shutdown
[ 66.027420@5] early_suspend_state=0
[ 66.344979@0] binder: undelivered TRANSACTION_COMPLETE
[ 66.345017@0] binder: undelivered transaction 27387, process died.
[ 69.777450@1] init: couldn’t write 4941 to /dev/cpuset/camera-daemon/tasks: No such file or directory
[ 70.037221@3] aml_tdm_open
[ 70.037819@3] aml_tdm_open
[ 70.038545@4] aml_spdif_open
[ 70.040146@4] aml_spdif_close
[ 70.040759@3] type=1400 audit(1293883263.224:46): avc: denied { create } for pid=4823 comm=“HwBinder:4823_1” scontext=u:r:hal_audio_default:s0 tco0
[ 70.040779@3] type=1400 audit(1293883268.184:47): avc: denied { create } for pid=4945 comm=“HwBinder:4945_1” scontext=u:r:hal_audio_default:s0 tco0
[ 70.045683@0] selinux: avc: denied { set } for property=persist.audio.debug.search pid=4945 uid=1041 gid=1005 scontext=u:r:hal_audio_default:s0 0
[ 70.045683@0]
[ 70.045742@0] init: Unable to set property ‘persist.audio.debug.search’ to ‘’ from uid:1041 gid:1005 pid:4945: SELinux permission check failed
[ 70.045931@3] selinux: avc: denied { set } for property=persist.audio.debug.read pid=4945 uid=1041 gid=1005 scontext=u:r:hal_audio_default:s0 tc0
[ 70.045931@3]
[ 70.045950@3] init: Unable to set property ‘persist.audio.debug.read’ to ‘’ from uid:1041 gid:1005 pid:4945: SELinux permission check failed
[ 70.150397@4] aml_tdm_open
[ 70.152831@4] loopback_dai_startup
[ 70.156010@4] loopback_dai_shutdown
[ 71.030937@3] early_suspend_state=0
[ 74.777475@0] init: couldn’t write 5064 to /dev/cpuset/camera-daemon/tasks: No such file or directory
[ 75.042143@5] aml_tdm_open
[ 75.042669@5] aml_tdm_open
[ 75.043203@4] aml_spdif_open
[ 75.045073@5] aml_spdif_close
[ 75.048542@2] aml_tdm_open
[ 75.050862@3] type=1400 audit(1293883268.184:47): avc: denied { create } for pid=4945 comm=“HwBinder:4945_1” scontext=u:r:hal_audio_default:s0 tco0
[ 75.050902@5] loopback_dai_startup
[ 75.051124@2] loopback_dai_shutdown
[ 75.051588@5] selinux: avc: denied { set } for property=persist.audio.debug.search pid=5068 uid=1041 gid=1005 scontext=u:r:hal_audio_default:s0 0

Hii, Could you guys please try GApps on VIM3 with Android pie SDK??

Parth_Prajapati · October 18, 2021, 5:27am

@jasonl @Terry

Is there any app in GApps which causes these errors??
Because I am getting certification errors during installation.

jasonl · October 18, 2021, 6:13am

you can input git log in vendor/amlogic/google ,send the screenshot ,i will check

Parth_Prajapati · October 18, 2021, 6:17am

Sharing the screenshot.

jasonl · October 18, 2021, 6:29am

jasonl · October 18, 2021, 6:30am

your downloading is uncorrect,the last log is “add Chrome application”

Parth_Prajapati · October 19, 2021, 6:21am

Hii,
@jasonl I got it working. Thank You for your help.
I really appreciate it.

Jack_Wu · January 11, 2022, 7:18pm

@Terry @superceleron

repo sync khadas AOSP code

Then added SuperSU and Google Apps repositories to vendor/amlogic :
cd PROJECT/vendor/amlogic/
git clone GitHub - khadas/supersu: SuperSU root -b Nougat
git clone GitHub - terry2droid/google google -b Pie-arm

cd PROJECT/
source build/envsetup.sh
lunch kvim3-userdebug

make clean
Then start build
make -j24 otapackage

Wait compile. But find below error.

Unable to open ‘out/target/product/kvim3/obj/APPS/Chrome_intermediates/package.apk’ for verification
Unable to open ‘out/target/product/kvim3/obj/APPS/Chrome_intermediates/package.apk.unaligned’ as zip archive
mv: 無法 stat ‘out/target/product/kvim3/obj/APPS/Chrome_intermediates/package.apk.aligned’: 沒有此一檔案或目錄
[ 0% 39/21823] build out/target/product/kvim3/obj/KERNEL_OBJ/.config

jasonl · January 12, 2022, 1:37am

@Jack_Wu Modify the file 'PROJECT/device/khadas/kvim3.mk’Change the property ‘BUILD_WITH_GAPPS_CONFIG’ from false to true

Jack_Wu · January 12, 2022, 1:43am

@jasonl
I original have modify kvim3.mk file

path : …/device/khadas/
file : kvim3.mk
setting see below :
BUILD_WITH_ROOT_CONFIG :=true
BUILD_WITH_GAPPS_CONFIG := true

But still have below error :
Unable to open ‘out/target/product/kvim3/obj/APPS/Chrome_intermediates/package.apk’ for verification
Unable to open ‘out/target/product/kvim3/obj/APPS/Chrome_intermediates/package.apk.unaligned’ as zip archive
mv: 無法 stat ‘out/target/product/kvim3/obj/APPS/Chrome_intermediates/package.apk.aligned’: 沒有此一檔案或目錄
[ 0% 39/21823] build out/target/product/kvim3/obj/KERNEL_OBJ/.config

jasonl · January 12, 2022, 1:55am

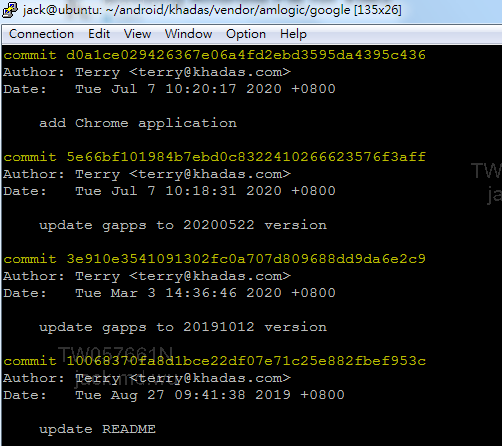

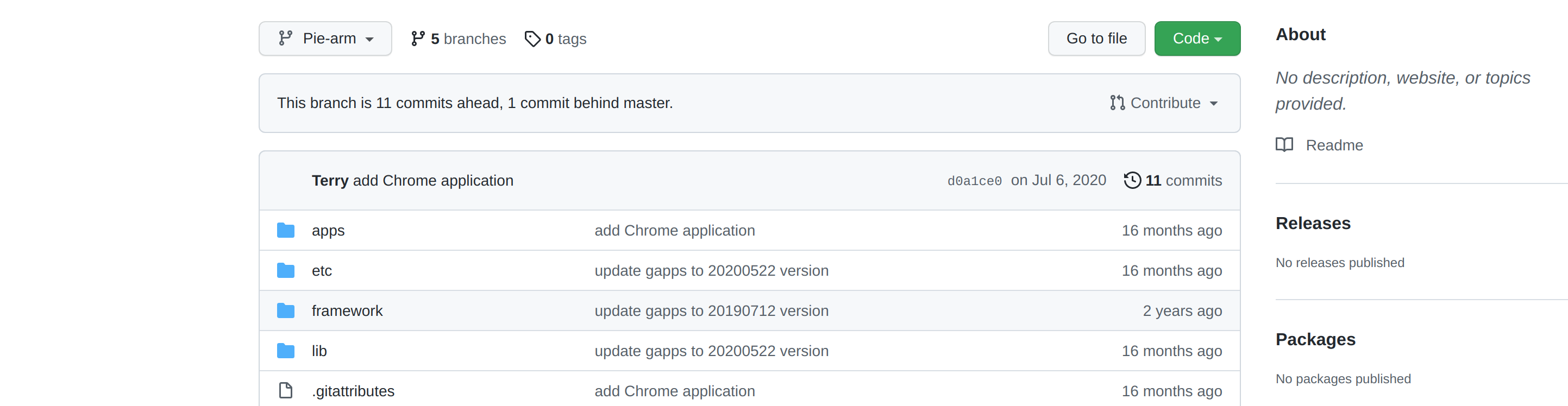

this is the log of vendor/amlogic/google git ,can you check it

Jack_Wu · January 12, 2022, 2:25am

@jasonl

after confirm same as your picture data.

see below :
gootle

Jack_Wu · January 13, 2022, 12:50am

@jasonl
I know how to solve this issue.

repo sync khadas AOSP code

Then added SuperSU and Google Apps repositories to vendor/amlogic :
cd PROJECT/vendor/amlogic/
git clone GitHub - khadas/supersu: SuperSU root -b Nougat
git clone GitHub - terry2droid/google google -b Pie-arm

then cancel the …/vendor/amlogic/google/apps/Chrome folder.
because the Chrome.apk only 1k maybe it is broken ?

cd PROJECT/
source build/envsetup.sh
lunch kvim3-userdebug

make clean
Then start build
make -j24 otapackage

Then build success

jasonl · January 13, 2022, 1:18am

@Jack_Wu yes,the Chrome.apk is not normal,i will check the repository content

Jack_Wu · January 16, 2022, 3:19am

@jasonl

Someone modify below git clone code.
git clone GitHub - terry2droid/google google -b Pie

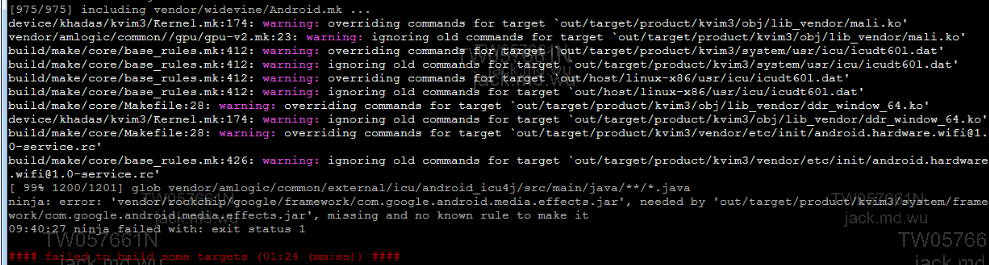

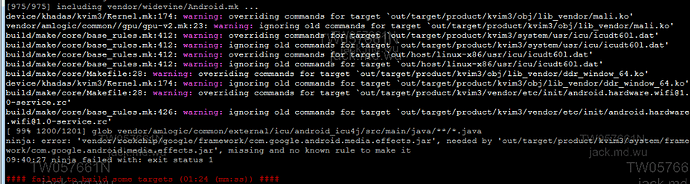

Currently compile have some error.
I think you may confirm again.

I also rollback old code to use this google code.

jasonl · January 19, 2022, 1:35am

yes,i will confirm again
